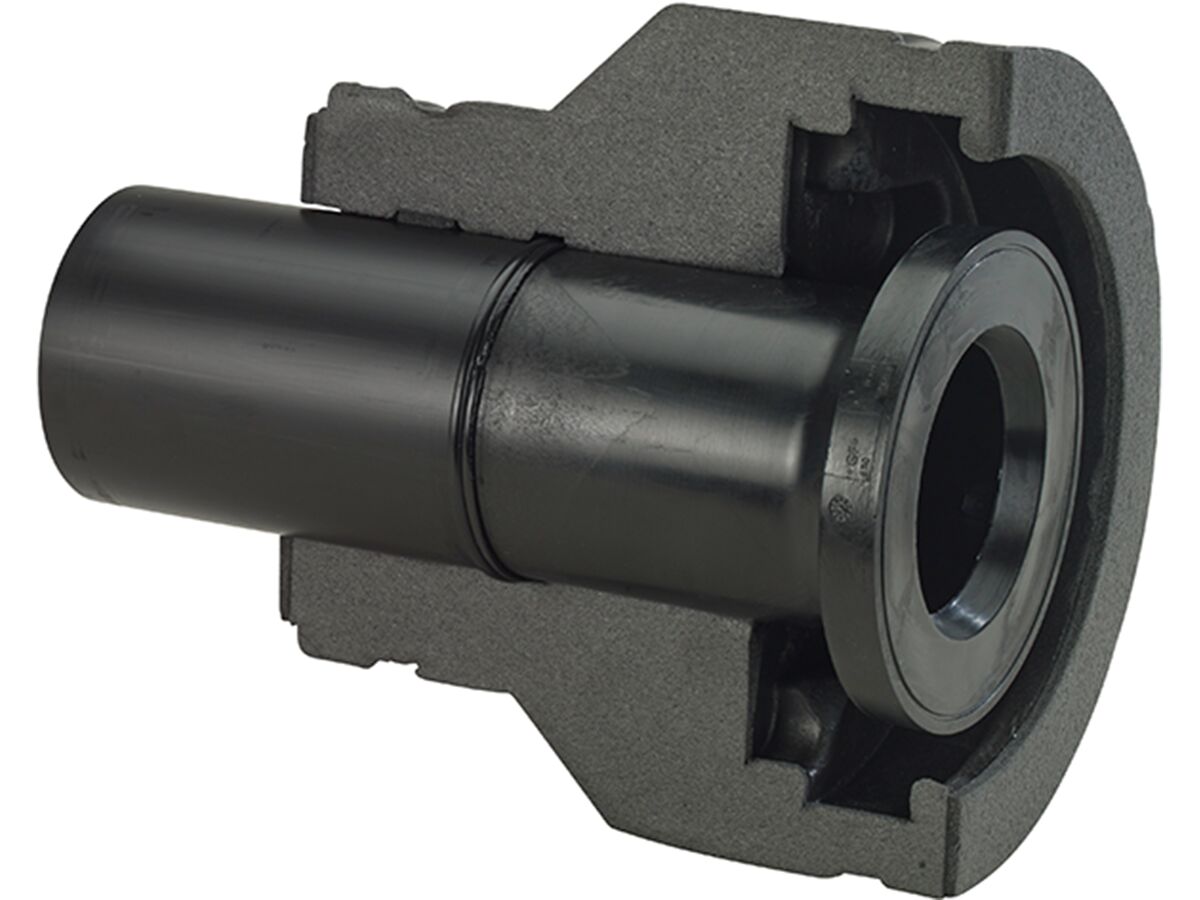

Cool-Fit 2.0/4.0 Insulated Long Spigot Stub Flange Adaptor DN150/ 160mm

Product code: 1470458

View Product Specifications

GF Piping Systems COOL-FIT 4.0

The range of Cool-Fit 4.0 flange adaptors have been created with the installer in mind. These fittings are ideal for connections between Cool-Fit 4.0 pipe runs and flanges. Additional fittings are required for the flange connection.

Features	- PE100 SDR11, ANSI - Suitable for flange connections to ANSI/ASME B16.5 - Gasket: Profile flange gasket NBR No. 45 44 05, EPDM No. 48 44 05 - Type 1 without chamfer, Type 2 with chamfer - Separate Fittings type A needed for joining Note: Backing ring and gasket not included
Pipe/Fitting Type	Flange
Primary Nominal Size	160 mm
Nominal Size 2	150 mm
Weight	1.748 kg
Pressure Rating	PN16
