Kruger Centrifugal Fan KDD8/8 165W4P-1 1S
Product code:
2711084
View Product Specifications
Kruger
Single speed fan
Product Specifications
Documents and Downloads
Back

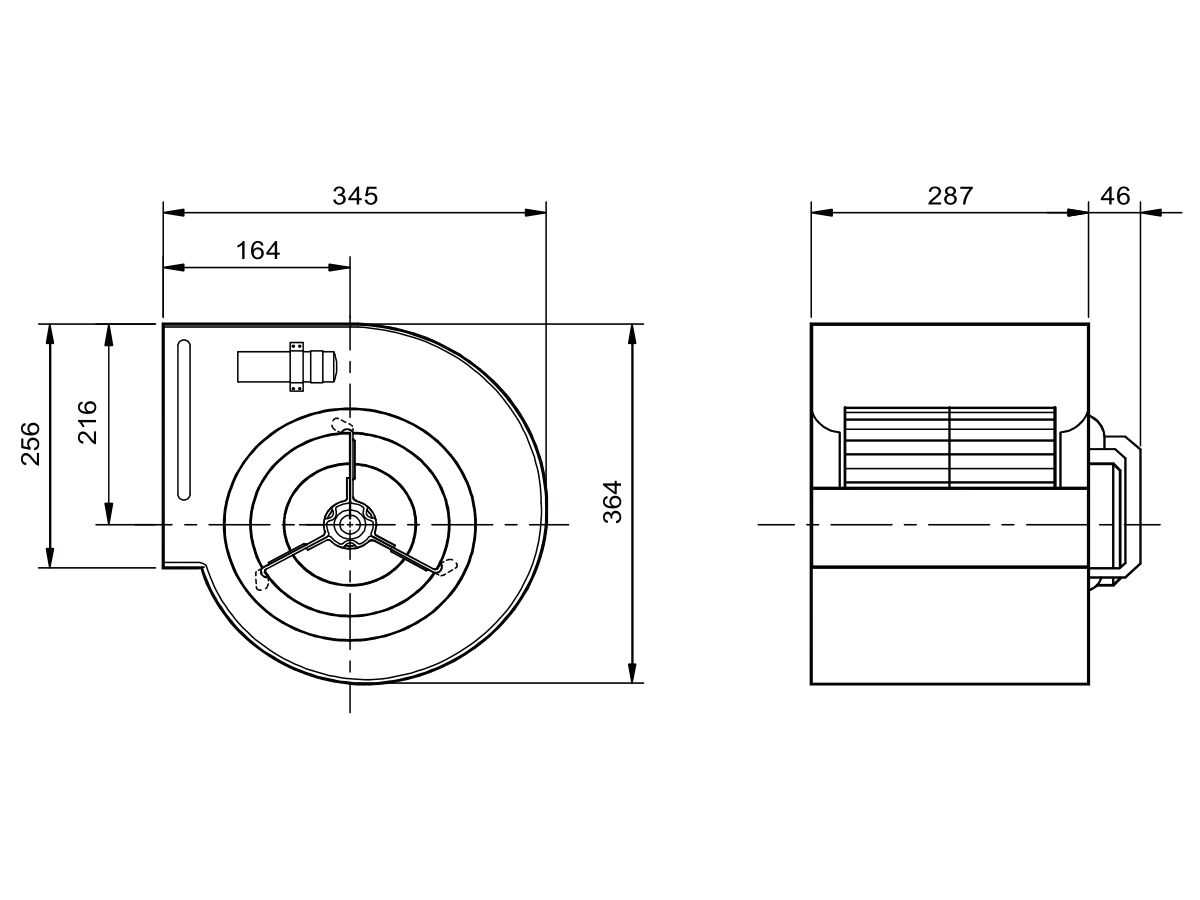

Size and Dimensions
Diameter
200 mm
Weight
11 kg
General Information
Part Number
KDD8/8 165W4P-1 1S
Product Range
KDD
Technical Information
Hertz
50
IP Rating
21
Number of Poles
4
Phase
1
Current Type
AC
RPM
1300 RPM
Run Capacitor (F/V)
7.5uf/450V
Speed
1300 RPM
Temperature Information
Operating Temperature
min -20 deg c, max +40 deg c
Power Information
Amps
1.25 A
Maximum Current
1.25 A
Power Output
165 W
Power Supply
220-240V
Watts
165 W
Brochure - KDD Direct Drive Centrifugal Fans
View
Brochures
Brochure - KDD Direct Drive Centrifugal Fans
View
Specification, Manuals & Installation
Specification Sheet - Kruger Centrifugal Fan KDD8/8 165W4P-1 1S
View
