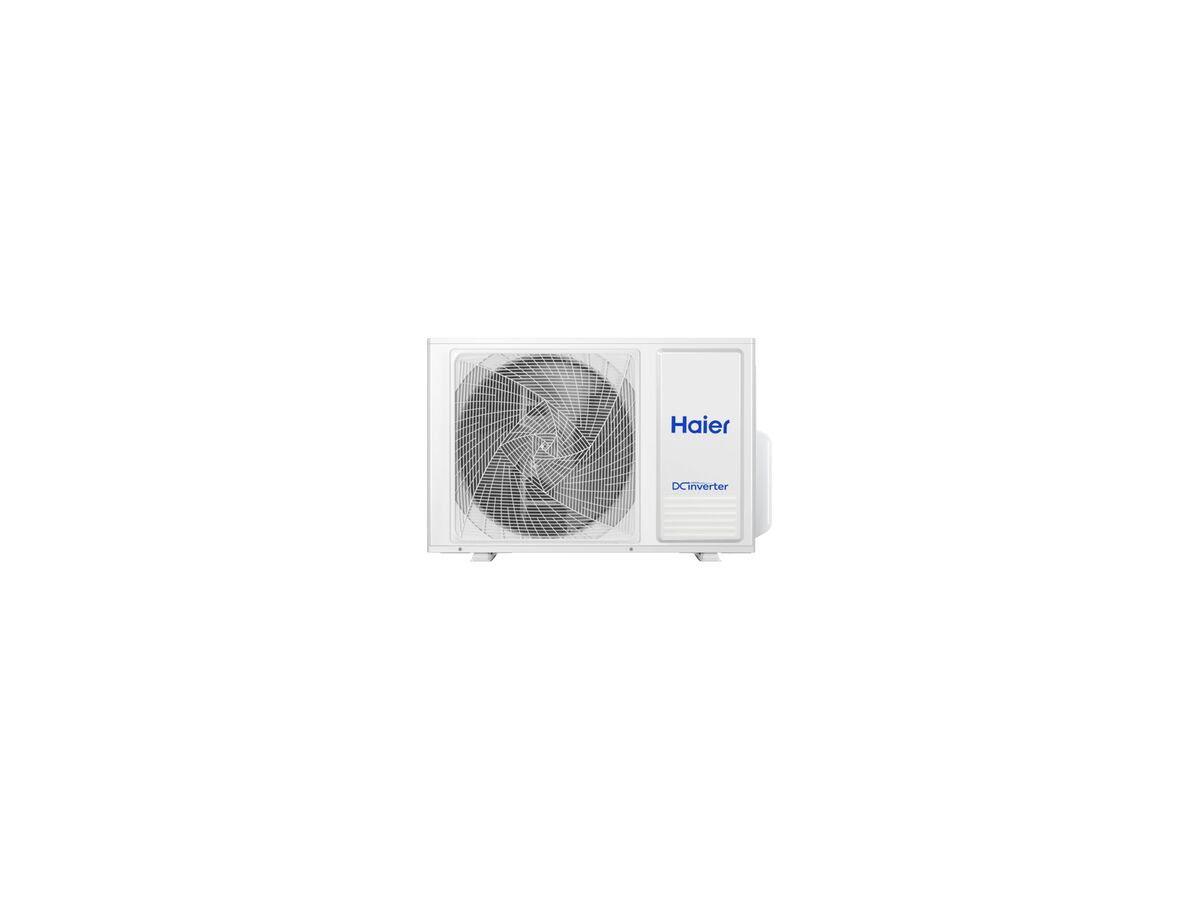

Haier Quartz Plus 3.5kW Wall Hung Split System Air Conditioner Outdoor Unit from Reece

Installation	External
Heating & Cooling Product Type	Wall Mounted Air Conditioner
Refrigerant Type	R32
Model Number	1U35MAFFRA
Liquid Connection Size	1/4 "
Gas Connection Size	3/8 "
Outdoor Unit Height	553 mm
Outdoor Unit Width	800 mm
Outdoor Unit Depth	275 mm
Outdoor Unit Weight	30 kg
Cooling Capacity	3.5 kW
Cooling Input	0.8 kW
Heating Capacity	3.7 kW
Heating Input	0.83 kW
Phase	Single Phase
Nominal Power Supply	220 - 240V 50Hz
Maximum Pipe Length	15 m
Maximum Height Difference	10 m
Cooling Star Rating (Hot)	5
Cooling Star Rating (Average)	4.5
Cooling Star Rating (Cold)	4.5
Heating Star Rating (Hot)	3.5
Heating Star Rating (Average)	3
Heating Star Rating (Cold)	2.5
