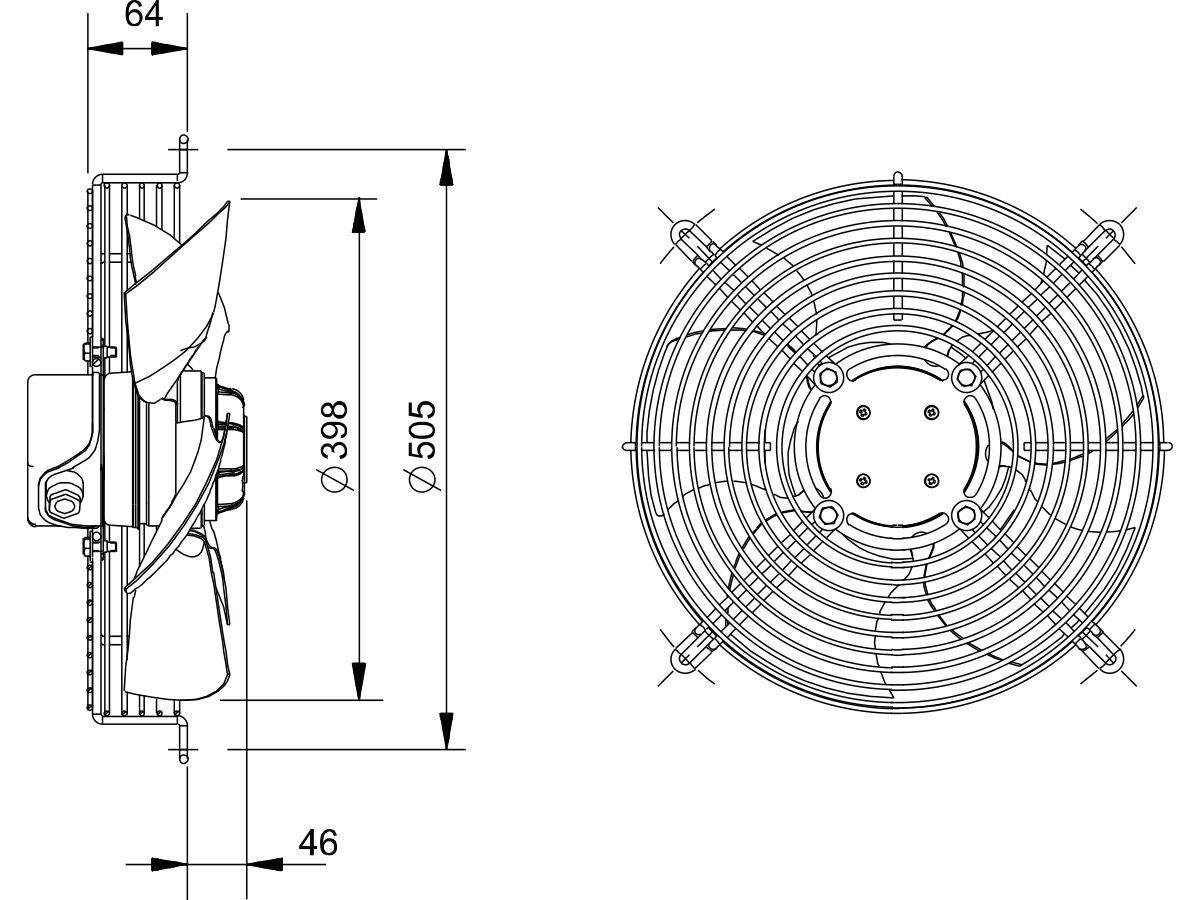

Technical Drawing - SolerPalau Fan 400mm 3Ph HRT/4-400BPN

SolerPalau Fan 400mm 3Ph HRT/4-400BPN

Product code: 2711033

View Product Specifications

Solerpalau

Fan Motor Assembly

Fan Assembly

Fan Assembly

Size and Dimensions

Diameter	400 mm
Weight	5 kg

General Information

Part Number	HRT/4-400BPN
Product Range	Rotorex Axial Fan

Technical Information

Air Flow (ltr/sec)	1049 ltr/sec
Mounting Hole Centres	505
Phase	3
Current Type	AC
RPM	1250 RPM
Speed	900 RPM

Power Information

Amps	0.32 A
Power Output	160 W
Power Supply	415V
Watts	160 W

Specification, Manuals & Installation

Specification Sheet - SolerPalau Fan 400mm 3Ph HRT/4-400BPN View
