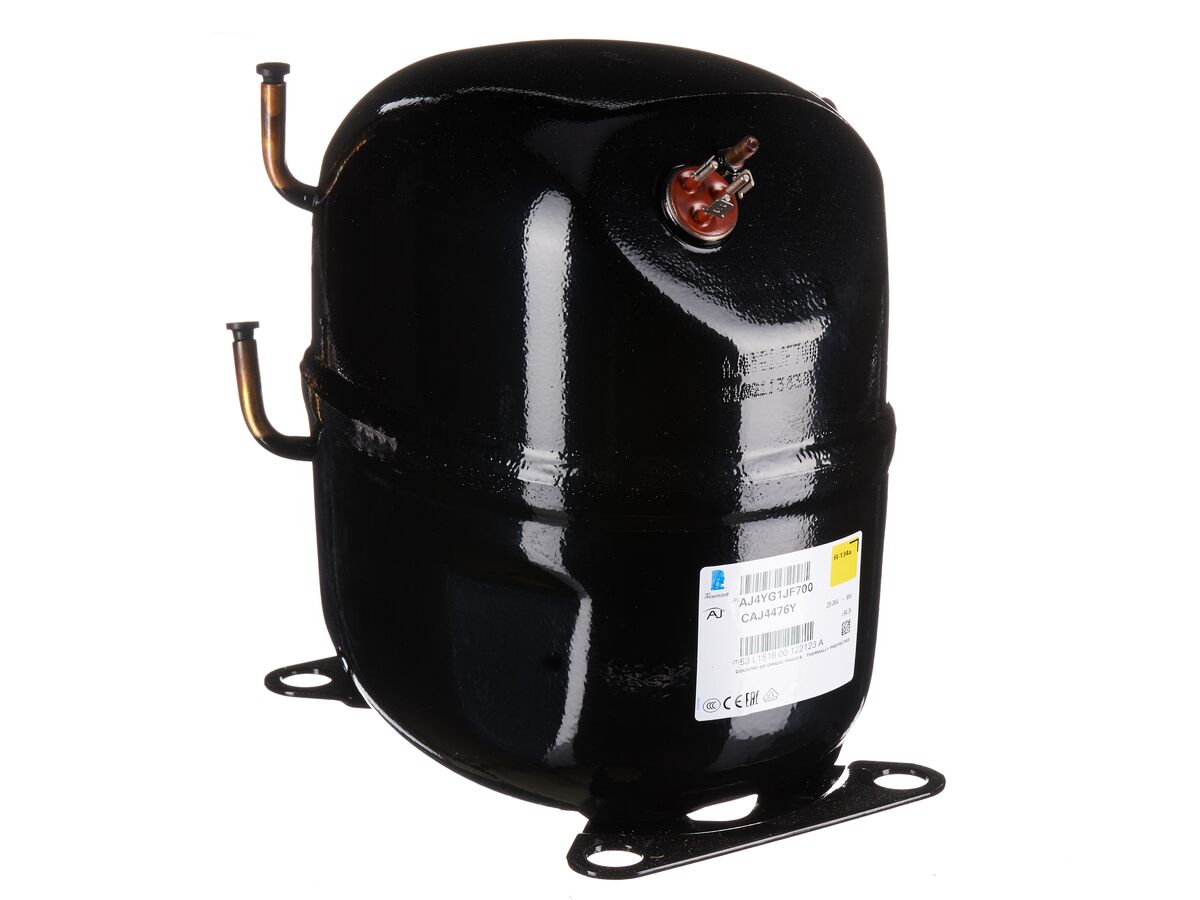

Tecumseh Compressor AJ2 5/8HP MHBP 1PH CAJ4476Y-FZ suitable for R134a/ R513A

Product code: 3500021

Tecumseh

The world renowned L'Unite Hermetique compressors are manufactured by Tecumseh.

Features	* Anti-vibration mounts supplied * Charged with polyolester oil and dry nitrogen * Rotalock suction valve on CAJ/TAJ models * Fan cooling required on all models * All models suit capillary tube or expansion valve operation
Refrigerant Type	R513A & R134a
Model Number	CAJ4476Y-FZ
Application (Condensing Unit)	High Back Pressure
Width	178 mm
Height	268 mm
Suction Connection Size	1/2 "
Discharge Connection Size	1/4 "
Weight	18.5 kg
Compressor Displacement	21.8 cm3/rev
Nominal Horsepower	0.625 HP
Oil Charge	475 mL
Compressor MOC	6.8 A
Compressor Electrical Supply	240 V
Compressor Phase	Single Phase
