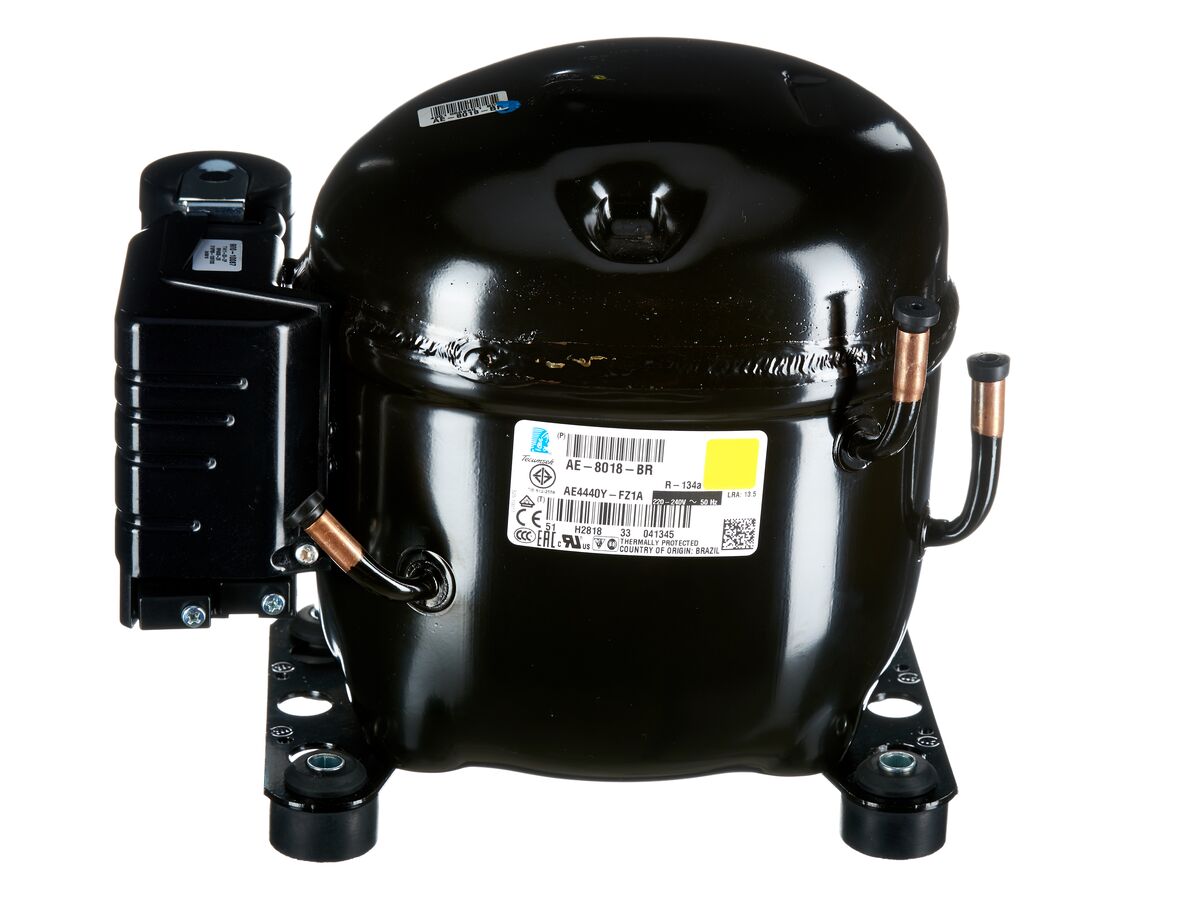

Tecumseh Compressor AE4440Y-FZ1A

R513A Approval Sticker

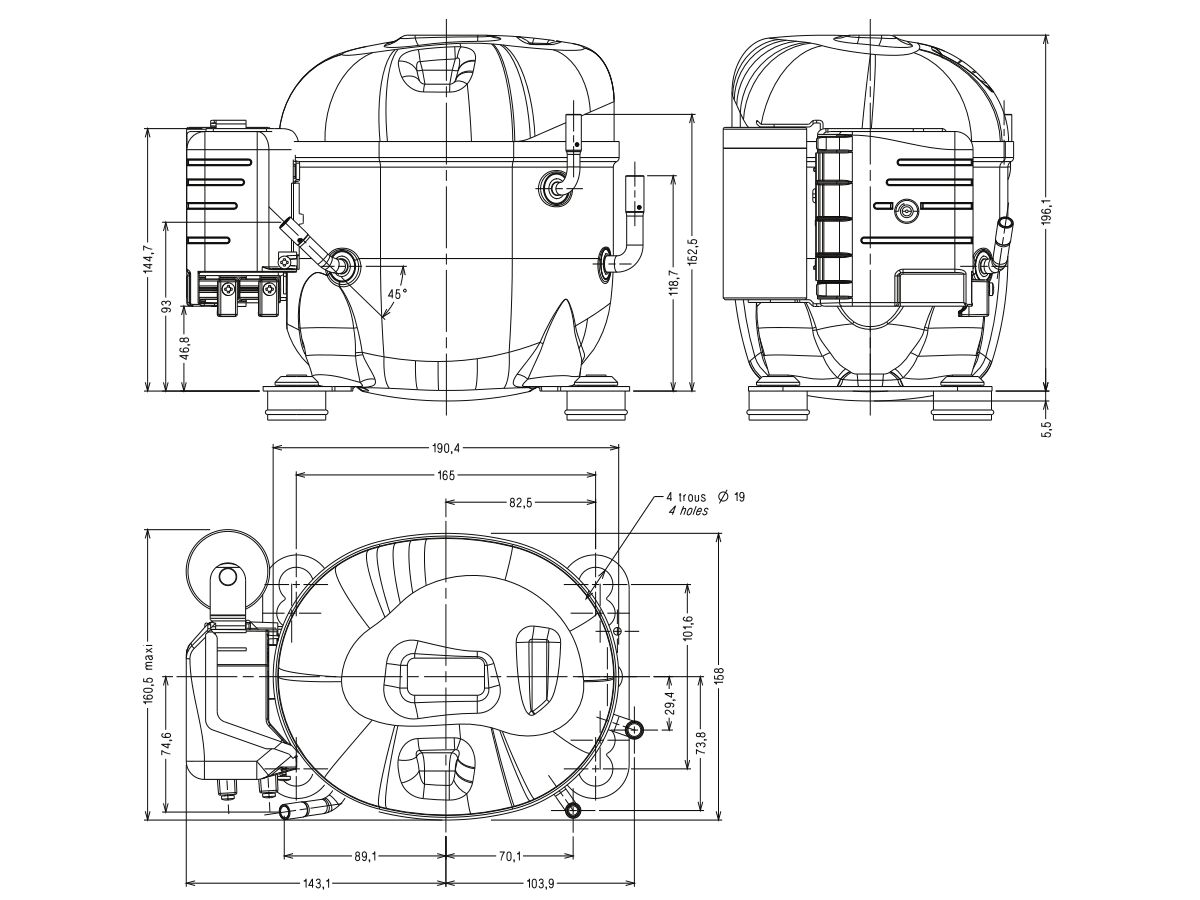

Tecumseh Compressor

Tecumseh Compressor

Tecumseh 'Made Like No Other'

Tecumseh 'Made Like No Other' - The Lab

Tecumseh Compressor 1/3HP MHBP 1PH AE4440Y-FZ1A suitable for R134a/ R513A

Product code: 9507022

View Product Specifications

Refrigerant Type	R513A & R134a
Model Number	AE4440Y-FZ1A
Width	247 mm
Height	196 mm
Suction Connection Size	5/16 "
Discharge Connection Size	1/4 "
Weight	9.8 kg
Compressor Displacement	10.33 cm3/rev
Nominal Horsepower	0.33 HP
Oil Charge	280 mL
Compressor MOC	3.7 A
Compressor Electrical Supply	240 V
Compressor Phase	Single Phase

Product Warranty	1 Years
Warranty Information	1 Year - See Warranty Document in maX for full T&C's

Learn about our Product Quality Guarantee

STP - Tecumseh Compressor 1/3HP R134A MHBP AE4440Y-FZ1A Download

Specification, Manuals & Installation

Capacity Data - Tecumseh L'Unite Hermetique Reciprocating AE2 Compressor Series

Capacity Data - Tecumseh L'Unite Hermetique Reciprocating AE2 Compressor Series View

Technical Specifications - Tecumseh Compressor 1/3HP R134A MHBP AE4440Y-FZ1A

Technical Specifications - Tecumseh Compressor 1/3HP R134A MHBP AE4440Y-FZ1A View

Tecumseh Compressor 1/3HP R134A MHBP AE4440Y-FZ1A

Tecumseh Compressor 1/3HP R134A MHBP AE4440Y-FZ1A View

Wiring Diagram - Tecumseh Single Phase Compressor CSIR

Wiring Diagram - Tecumseh Single Phase Compressor CSIR View

2D/3D Models

STP - Tecumseh Compressor 1/3HP R134A MHBP AE4440Y-FZ1A Download
