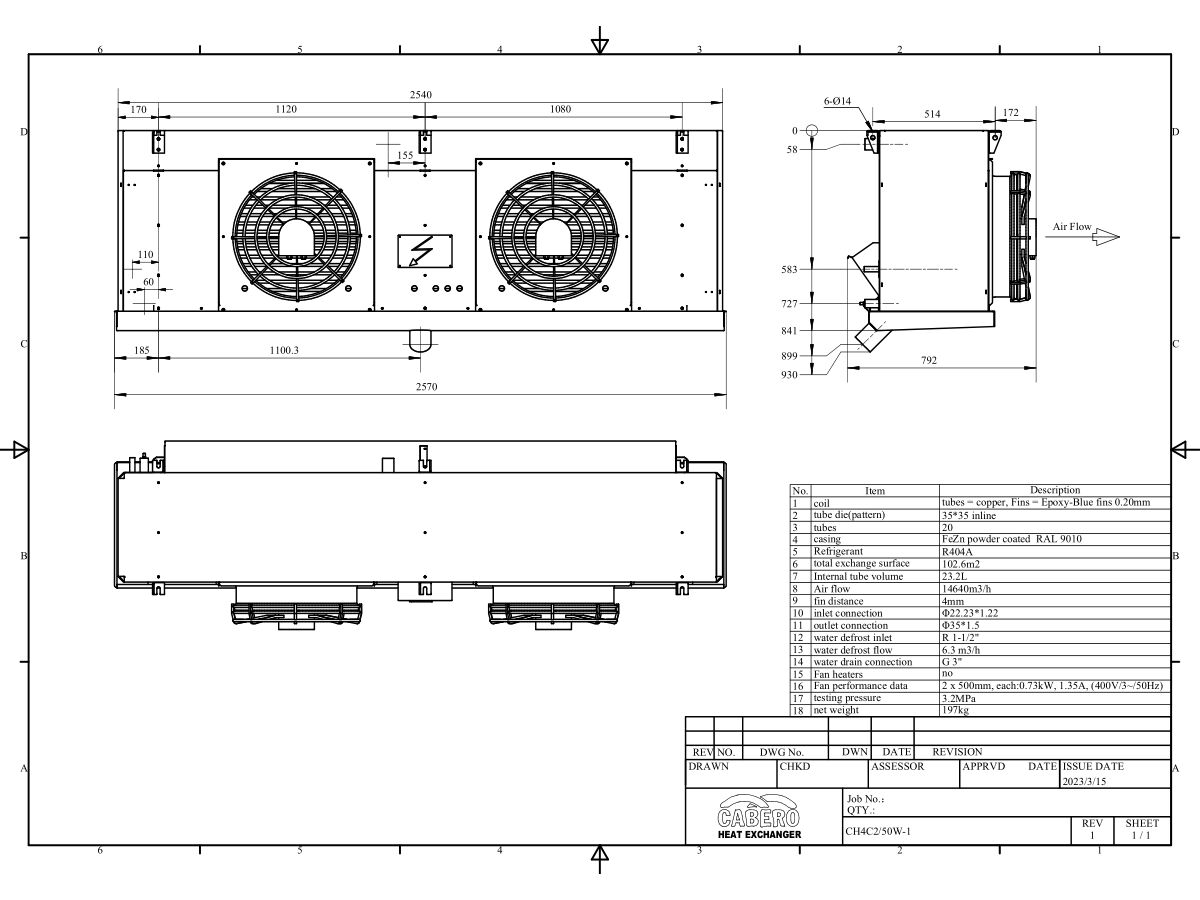

Cabero Water Defrost Evaporator CH4C2/50W-1
Product code:
3509010
View Product Specifications
Product Specifications
Warranty Information
Documents and Downloads
Back
Model Number
CH4C2/50W-1
Length
2570 mm
Width
793 mm
Height
840 mm
Suction Connection Size
1 3/8 "
Liquid Connection Size
7/8 "
Fan Diameter
500 mm
Drain Size
3 "
Weight
183 kg
Number of Fans
2
Fan MOC
2.7 A
Fan Electrical Supply
400 V
Fan Phase
Three Phase
Air Throw
27 m
Defrost Type
Water
Sound Power Level
84 dBA
Air Flow Rate
4264 ltr/sec
