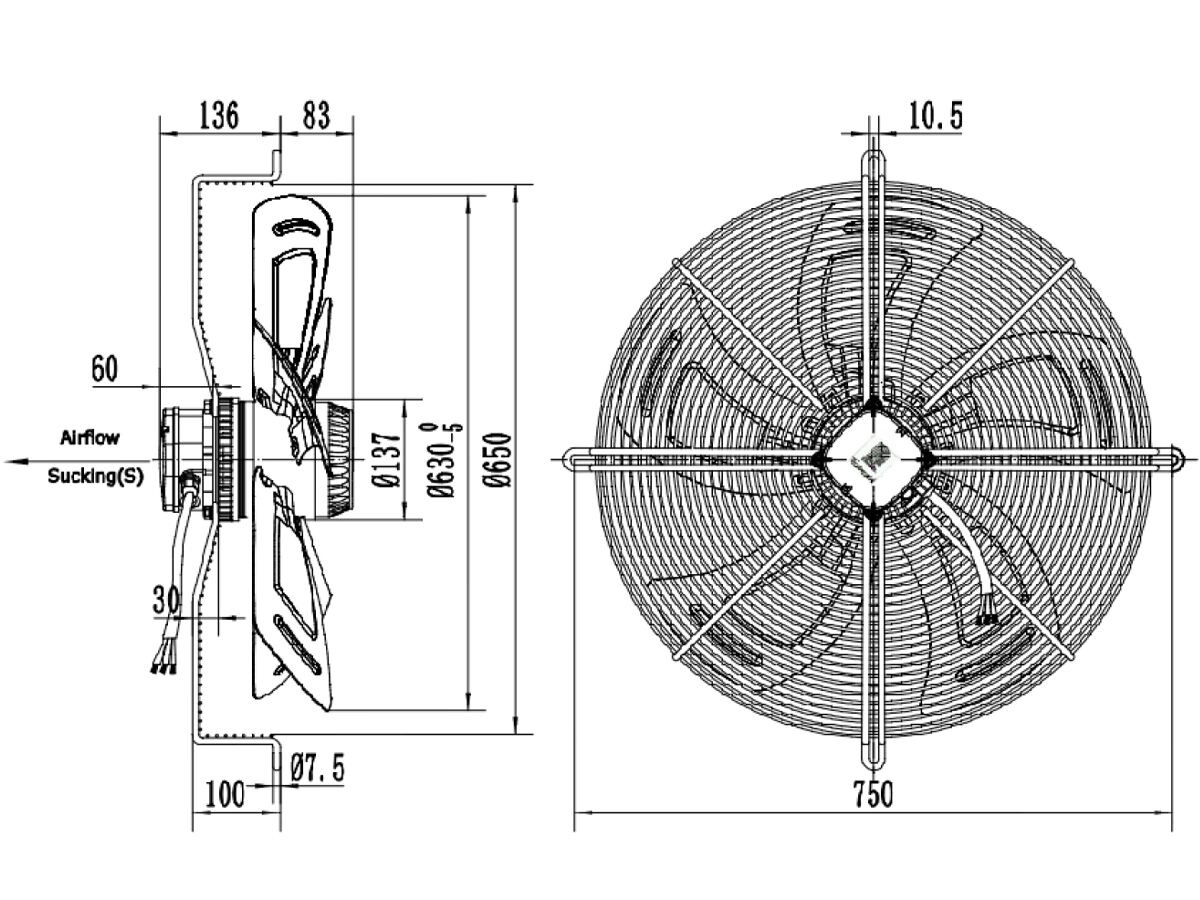

Tecumseh 630mm 1ph Fan Motor Assembly 7552536
Product code:
3406120
View Product Specifications
Product Specifications
Documents and Downloads
Videos
Back
Size and Dimensions
Weight (Net)
15 kg
General Information
Mounting
Horizontal or vertical
Part Number
TEME630
Technical Information
Air Flow
9400 m3/h
Fan Diameter
630 mm
Noise Level
75 dBA
Rotation
Clockwise (Lead End)
Run Capacitor (F/V)
16uF
Speed
1380 RPM
Power Information
Fan Current
3.20A
Fan Phase
1
Fan Electrical Hertz
50Hz
Fan Power Input
700 W
Specification, Manuals & Installation
Specification Sheet - Tecumseh 630mm 1ph Fan Motor Assembly 7552536
