Tecumseh Compressor 2.5HP R22 MHBP FH4531F V

Product code: 2708820

View Product Specifications

Tecumseh

For Medium / High Temperature Applications

Tecumseh Compressor

Tecumseh Compressor

Size and Dimensions

Connection Size (Liquid)	1/2" Valve
Connection Size (Suction)	7/8" Valve

Inclusions and Exclusions

Inclusions	Anti-Vibration mounts supplied
	Crankcase Heater
	Oil Sight Glass
	Suction and Discharge Rotalock Valves

Features

	Anti-Vibration mounts supplied
	Charged with mineral oil and dry nitrogen
	Crankcase heater on FH/TFH and TAG models
	Oil sight glass on FH/TFH and TAG models
	Fan cooling required on all models
	All models suit capillary tube or expansion valve operation
	Rotalock suction and discharge valves on FH/TFH and TAG models

General Information

Compressor Type	Hermetic
Model Number	FH4531F
Compressor Model	FH4531F
Product Range	FH Series

Technical Information

Refrigerant Type	R438A
Application	MHBP
Motor Type	CSR
Compressor Horsepower	2.5 HP
Compressor Displacement	56.65 cm3/rev
Oil Charge	1330 ml
Specifications	Capacity Rating Basis: 35 deg C Ambient, 11K Return Gas Superheat, 54.5 deg C Condensing, 46 deg C Liquid entering Expansion Valve. Current FLA are given at nominal voltage, rated conditions and 7.2 deg C evaporating temperature.

Power Information

Compressor Phase	1
Compressor Electrical Supply	240V
Compressor Hertz	50Hz
Compressor MOC	21 A
Power Supply	240V

R22 Capacity Data

-15 Deg C	2620 W
-10 Deg C	3504 W
-5 Deg C	4517 W
0 Deg C	5659 W
15 Deg C	9854 W

Warranty

Spare Parts	1 Year - See Warranty Document in maX for full T&C's

Learn about our Product Quality Guarantee

STP - Tecumseh Compressor Download

Specification, Manuals & Installation

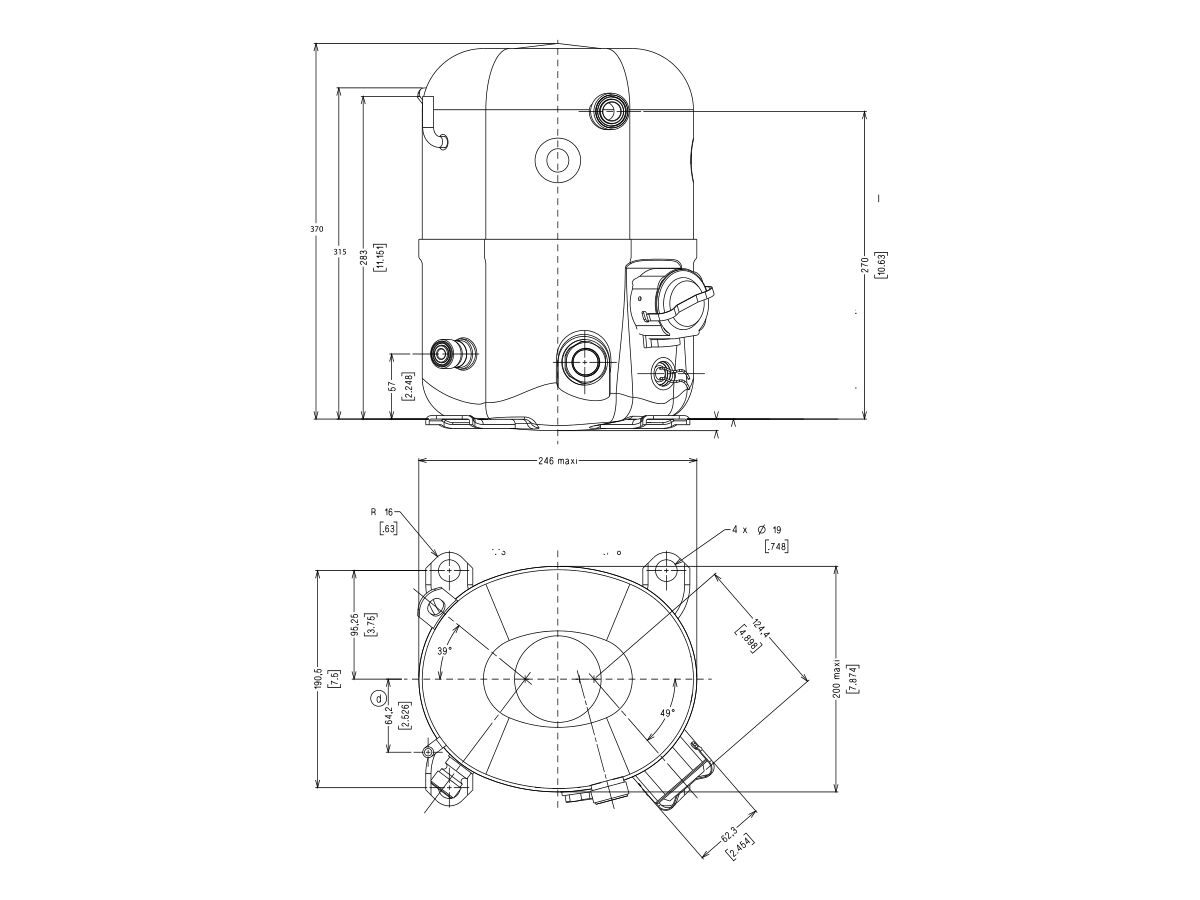

Technical Drawing - Tecumseh Compressor View
