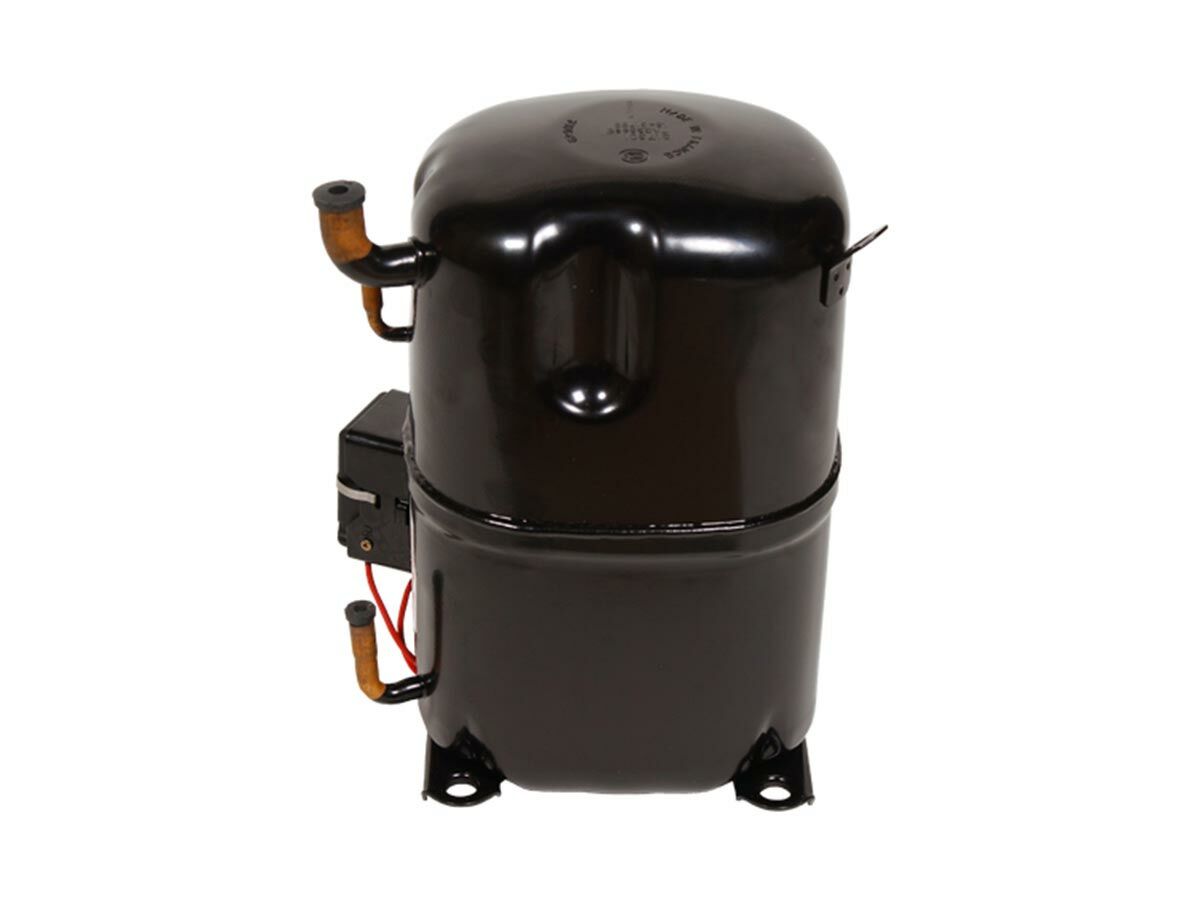

Tecumseh Compressor 2hp R22 MHBP TFH5524E TUBE

Product code: 2708893

View Product Specifications

Tecumseh Tecumseh > 1 HP and < 3 HP

For Air Conditioning Applications

Tecumseh Compressor R22

Tecumseh Compressor R22

Size and Dimensions

Connection Size (Liquid)	3/8" Tube
Connection Size (Suction)	5/8" Tube
Process Connection	5/16" Tube

Inclusions and Exclusions

Inclusions	Anti-Vibration mounts supplied
	Crankcase Heater
	Oil Sight Glass

Features

	Anti-Vibration mounts supplied
	Pre-Charged with mineral oil and dry nitrogen
	Crankcase heater on FH/TFH and TAG models
	Oil sight glass on FH/TFH and TAG models
	Fan cooling required on all models
	All models suit capillary tube or expansion valve operation

General Information

Compressor Type	Hermetic
Model Number	TFH 5524E
Compressor Model	TFH 5524E
Product Range	FH Series

Technical Information

Refrigerant Type	R417A, R422B
Application	AC
Motor Type	3 Ph
Compressor Horsepower	2 HP
Compressor Displacement	43.5 cm3/rev
Expansion Device	C/V
Oil Charge	1330 ml
Specifications	Capacity Rating Basis: 35 deg C Ambient, 11K Return Gas Superheat, 54.5 deg C Condensing, 46.2 deg C Liquid entering Expansion Valve. Current FLA are given at nominal voltage, rated conditions and 7.2 deg C Evaporating Temperature.
VBIS Tag	RE-Co-He

Power Information

Compressor Phase	3
Compressor Electrical Supply	400V
Compressor Hertz	50Hz
Compressor MOC	5.8 A
Power Supply	415V

Refrigerant Capacities

R22 Capacity @ -10 deg C	2443 W
R22 Capacity @ -5 deg C	3219 W
R22 Capacity @ 0 deg C	4140 W
R22 Capacity @ 7.2 deg C	5718 W
R22 Capacity @ 10 deg C	6413 W

Warranty

Spare Parts	1 Year - See Warranty Document in maX for full T&C's

Learn about our Product Quality Guarantee

stp - Tecumseh Compressor 2hp R22 MHBP TFH5524E TUBE Download

Specification, Manuals & Installation

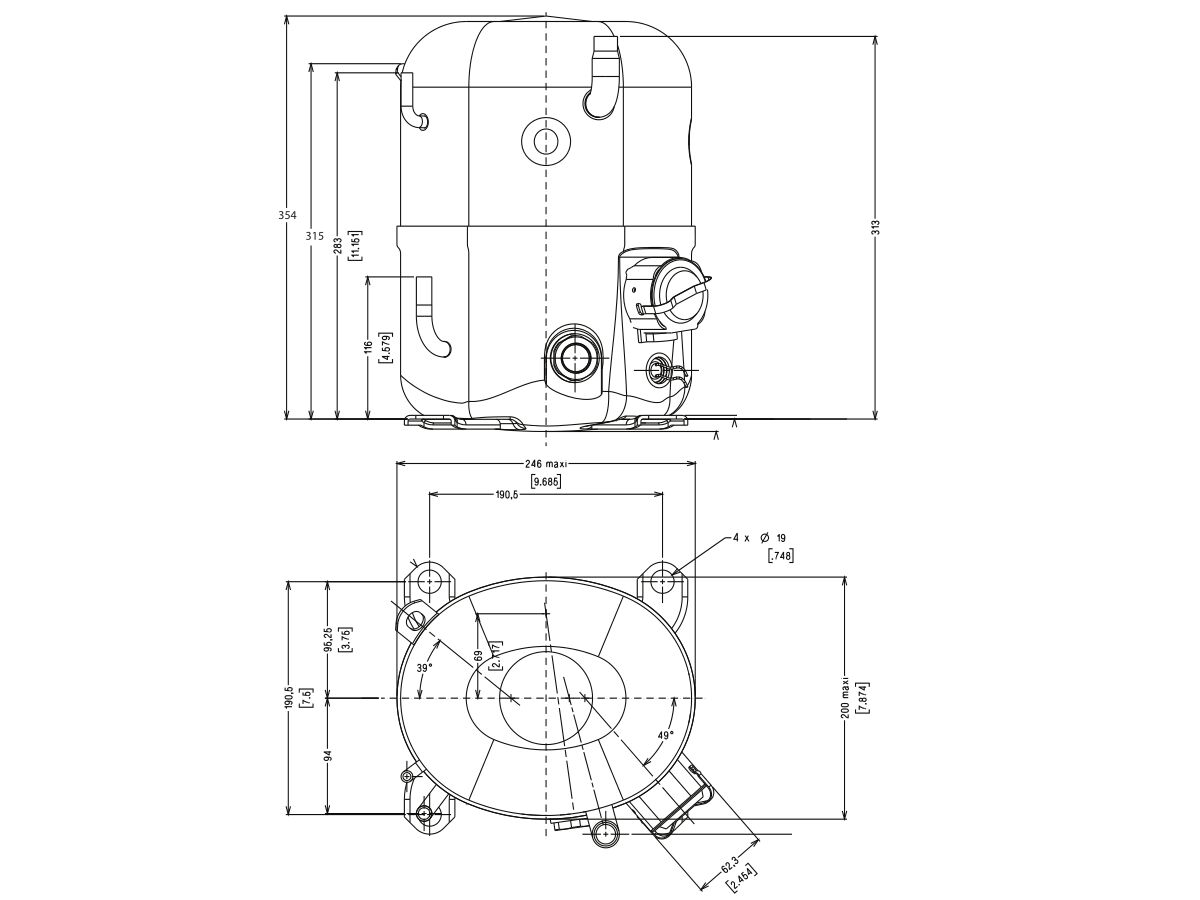

Technical Drawing - Tecumseh Compressor 2hp R22 MHBP TFH5524E TUBE View

Technical Specifications - Tecumseh Compressor 2hp R22 MHBP TFH5524E TUBE View

Wiring Diagram - Tecumseh Three Phase Compressor View

2D/3D Models

stp - Tecumseh Compressor 2hp R22 MHBP TFH5524E TUBE Download

Warranty

Warranty - Tecumseh View
