Tecumseh Compressor

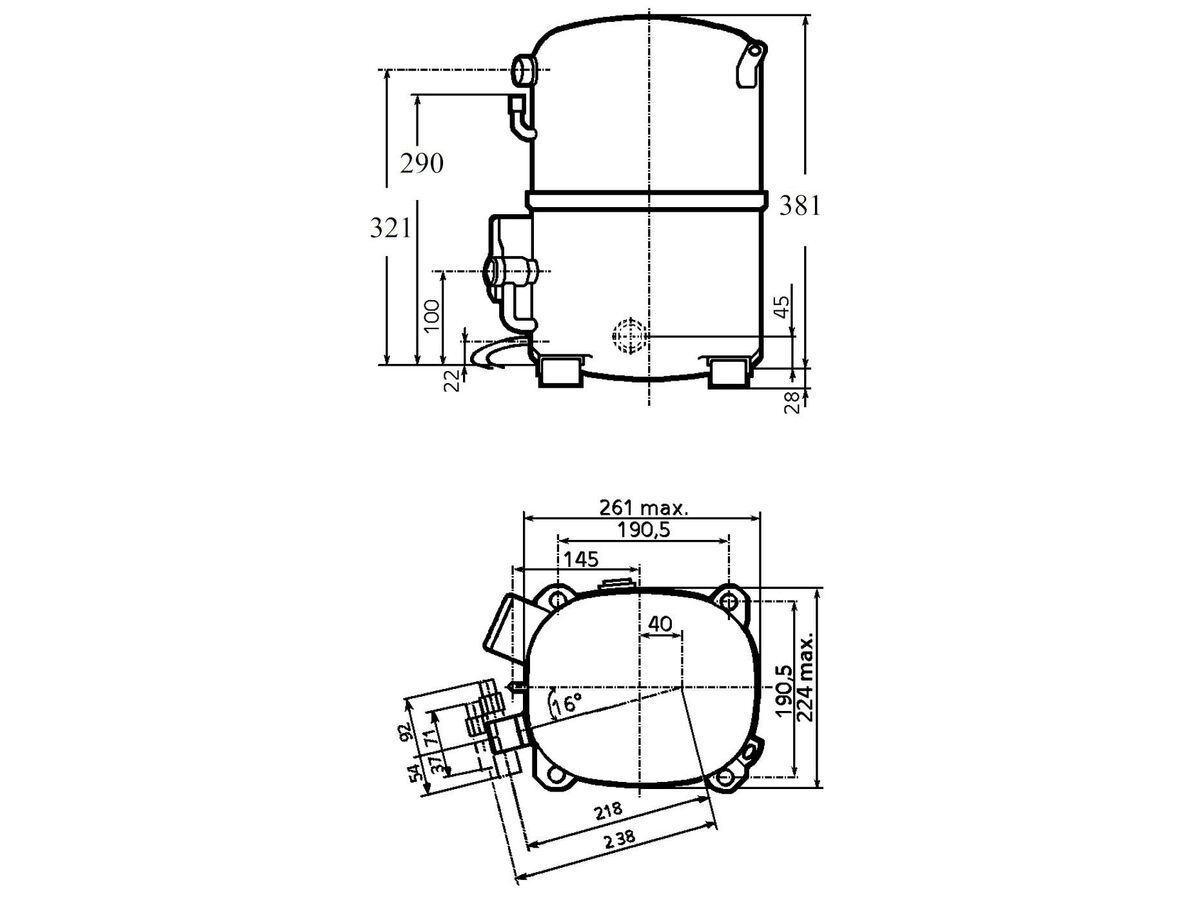

Tecumseh Compressor 4.5hp R22 MHBP TAG4553T V

Tecumseh TAG Compressor

Tecumseh 'Made Like No Other'

Tecumseh 'Made Like No Other' - The Lab

Tecumseh Compressor 4.5HP R22 MHBP TAG4553T V

Product code: 2708824

View Product Specifications

Tecumseh

For Medium / High Temperature Applications

Tecumseh Compressor

Tecumseh Compressor

Size and Dimensions

Connection Size (Liquid)	5/8" Valve
Connection Size (Suction)	7/8" Valve

Inclusions and Exclusions

Inclusions	Anti-Vibration mounts supplied
	Crankcase Heater
	Oil Sight Glass
	Suction and Discharge Rotalock Valves

Features

	Anti-Vibration mounts supplied
	Charged with mineral oil and dry nitrogen
	Crankcase heater on FH/TFH and TAG models
	Oil sight glass on FH/TFH and TAG models
	Fan cooling required on all models
	All models suit capillary tube or expansion valve operation
	Rotalock suction and discharge valves on FH/TFH and TAG models

General Information

Compressor Type	Hermetic
Model Number	TAG4553T
Compressor Model	TAG4553T
Product Range	AG Series

Technical Information

Refrigerant Type	R438A
Application	MHBP
Motor Type	3 Ph
Compressor Horsepower	4.5 HP
Compressor Displacement	100.7 cm3/rev
Oil Charge	1760 ml
Specifications	Capacity Rating Basis: 35 deg C Ambient, 11K Return Gas Superheat, 54.5 deg C Condensing, 46 deg C Liquid entering Expansion Valve. Current FLA are given at nominal voltage, rated conditions and 7.2 deg C evaporating temperature.

Power Information

Compressor Phase	3
Compressor Electrical Supply	400V
Compressor Hertz	50Hz
Compressor MOC	12 A
Power Supply	415V

R22 Capacity Data

-25 Deg C	1528 W
-20 Deg C	2644 W
-15 Deg C	3875 W
-10 Deg C	5306 W
-5 Deg C	7022 W
0 Deg C	9105 W
15 Deg C	18406 W

Warranty

Spare Parts	1 Year - See Warranty Document in maX for full T&C's
