Tecumseh Compressor 6hp R22 MHBP TAG4568T V

Product code: 2708827

View Product Specifications

Tecumseh > 5.5 HP and < 12.5 HP

For Medium / High Temperature Applications

Tecumseh Compressor

Tecumseh Compressor

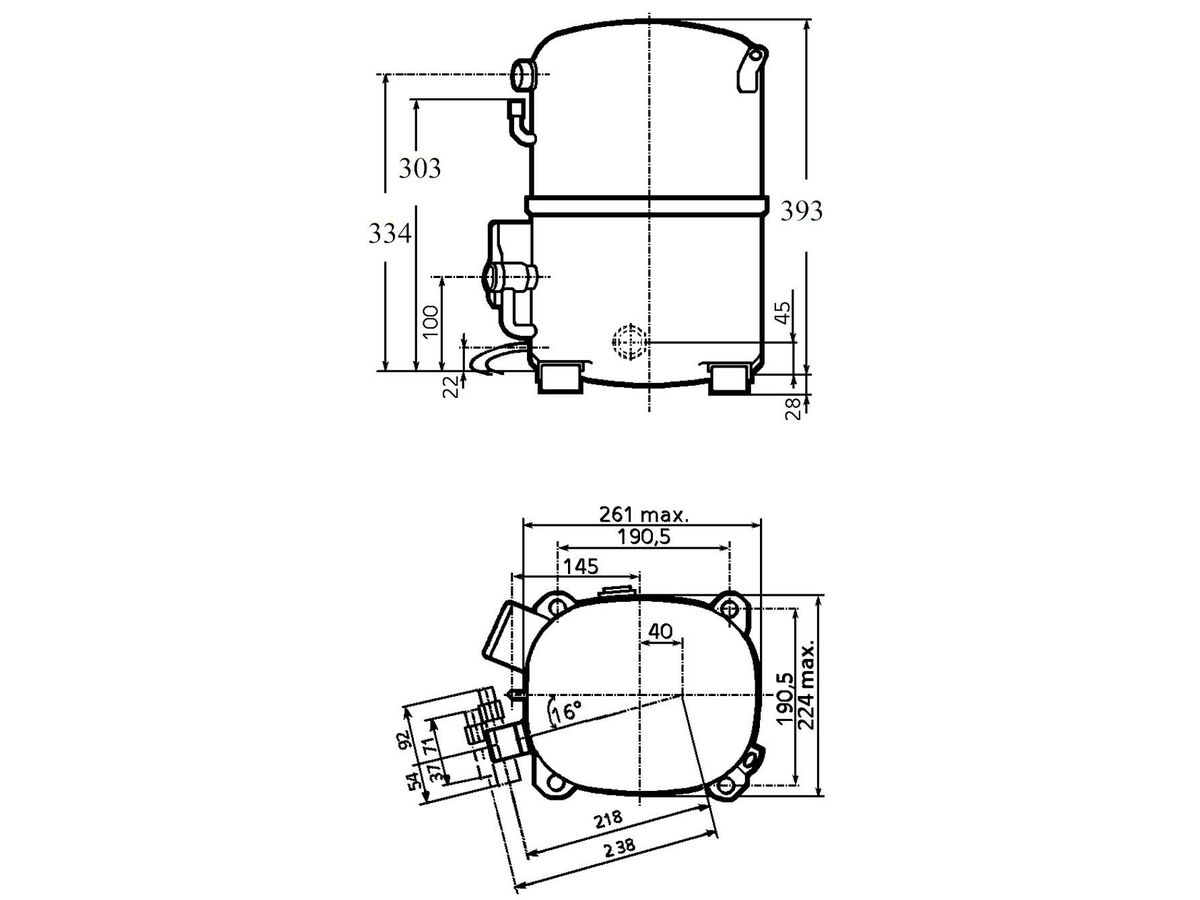

Size and Dimensions

Connection Size (Liquid)	5/8" Valve
Connection Size (Suction)	1 7/8" Valve

Inclusions and Exclusions

Inclusions	Anti-Vibration mounts supplied
	Crankcase Heater
	Oil Sight Glass
	Suction and Discharge Rotalock Valves

Features

	Anti-Vibration mounts supplied
	Charged with mineral oil and dry nitrogen
	Crankcase heater on FH/TFH and TAG models
	Oil sight glass on FH/TFH and TAG models
	Fan cooling required on all models
	All models suit capillary tube or expansion valve operation
	Rotalock suction and discharge valves on FH/TFH and TAG models

General Information

Compressor Type	Hermetic
Model Number	TAG4568T
Compressor Model	TAG4568T
Product Range	AG Series

Technical Information

Refrigerant Type	R417A, R422B
Application	MHBP
Motor Type	3 Ph
Compressor Horsepower	6 HP
Compressor Displacement	124.4 cm3/rev
Oil Charge	1760 ml
Specifications	Capacity Rating Basis: 35 deg C Ambient, 11K Return Gas Superheat, 54.5 deg C Condensing, 46 deg C Liquid entering Expansion Valve. Current FLA are given at nominal voltage, rated conditions and 7.2 deg C evaporating temperature.
VBIS Tag	RE-Co-He

Power Information

Compressor Phase	3
Compressor Electrical Supply	400V
Compressor Hertz	50Hz
Compressor MOC	15.6 A
Power Supply	415V

Refrigerant Capacities

R22 Capacity @ -25 deg C	2493 W
R22 Capacity @ -20 deg C	3687 W
R22 Capacity @ -15 deg C	5157 W
R22 Capacity @ -10 deg C	6967 W
R22 Capacity @ -5 deg C	9180 W
R22 Capacity @ 0 deg C	11862 W
R22 Capacity @ 7.2 deg C	16676 W
R22 Capacity @ 15 deg C	23359 W

Warranty

Spare Parts	1 Year - See Warranty Document in maX for full T&C's
