R513A Approval Sticker

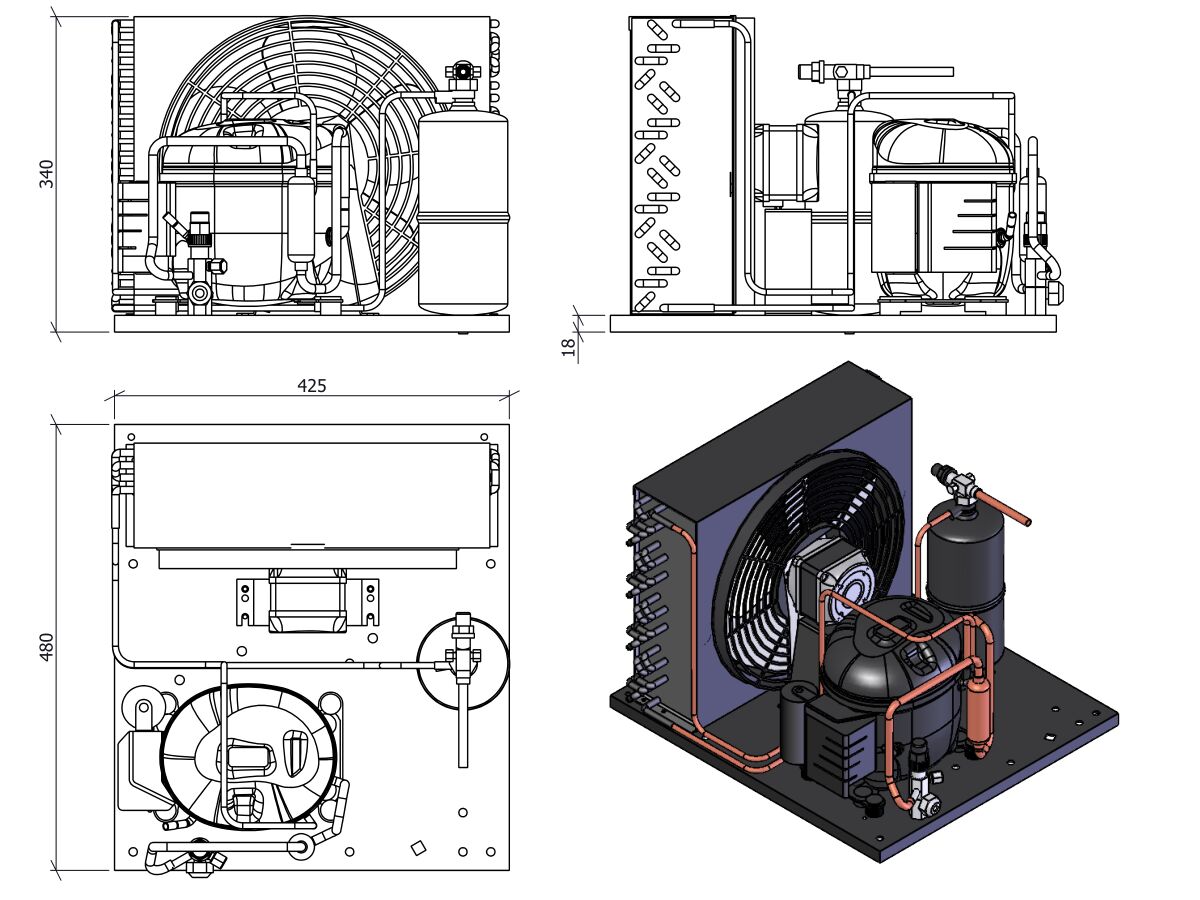

Tecumseh Condensing Unit 1/2HP R134A MHBP AET4456YHR

Tecumseh 'Made Like No Other'

Tecumseh 'Made Like No Other' - The Lab

Tecumseh HTA Condensing Unit 1/2HP MHBP 1PH AET4456YHR suitable for R134a/ R513A

Product code: 9507063

View Product Specifications

Model Number	AET4456YHR-FZ1C
Refrigerant Type	R513A & R134a
Compressor Type	Hermetic
Compressor Model	AE4456Y-FZ1C
Length	480 mm
Width	425 mm
Height	340 mm
Suction Connection Size	3/8 "
Liquid Connection Size	1/4 "
Fan Diameter	300 mm
Weight	26 kg
Number of Fans	1
Fan MOC	0.62 A
Fan Electrical Supply	240 V
Fan Phase	Single Phase
Receiver Capacity at 80%	0.75 kg
Nominal Horsepower	0.5 HP
Sound Power Level	69 dBA
Compressor MOC	4.3 A
Compressor Electrical Supply	230 V
Compressor Phase	Single Phase
Air Flow Rate	1400 m3/h

Product Warranty	1 Years
Warranty Information	1 Year - See Warranty Document in maX for full T&C's

Learn about our Product Quality Guarantee

Brochure - Tecumseh Refrigeration Condensing Units

Brochure - Tecumseh Refrigeration Condensing Units View

X_T - Tecumseh Condensing Unit 1/2HP R134A MHBP AET4456YHR Download

Brochures

Brochure - Tecumseh Refrigeration Condensing Units

Brochure - Tecumseh Refrigeration Condensing Units View

Specification, Manuals & Installation

Capacity Data - Tecumseh L'Unite Hermetique HTA Condensing Unit R134a Medium Temperature Applications

Capacity Data - Tecumseh L'Unite Hermetique HTA Condensing Unit R134a Medium Temperature Applications View

Tecumseh Condensing Unit 1/2HP R134A MHBP AET4456YHR

Tecumseh Condensing Unit 1/2HP R134A MHBP AET4456YHR View

Wiring Diagram - Tecumseh Condensing Unit Model CAJ & AE2 (CSIR)

Wiring Diagram - Tecumseh Condensing Unit Model CAJ & AE2 (CSIR) View
