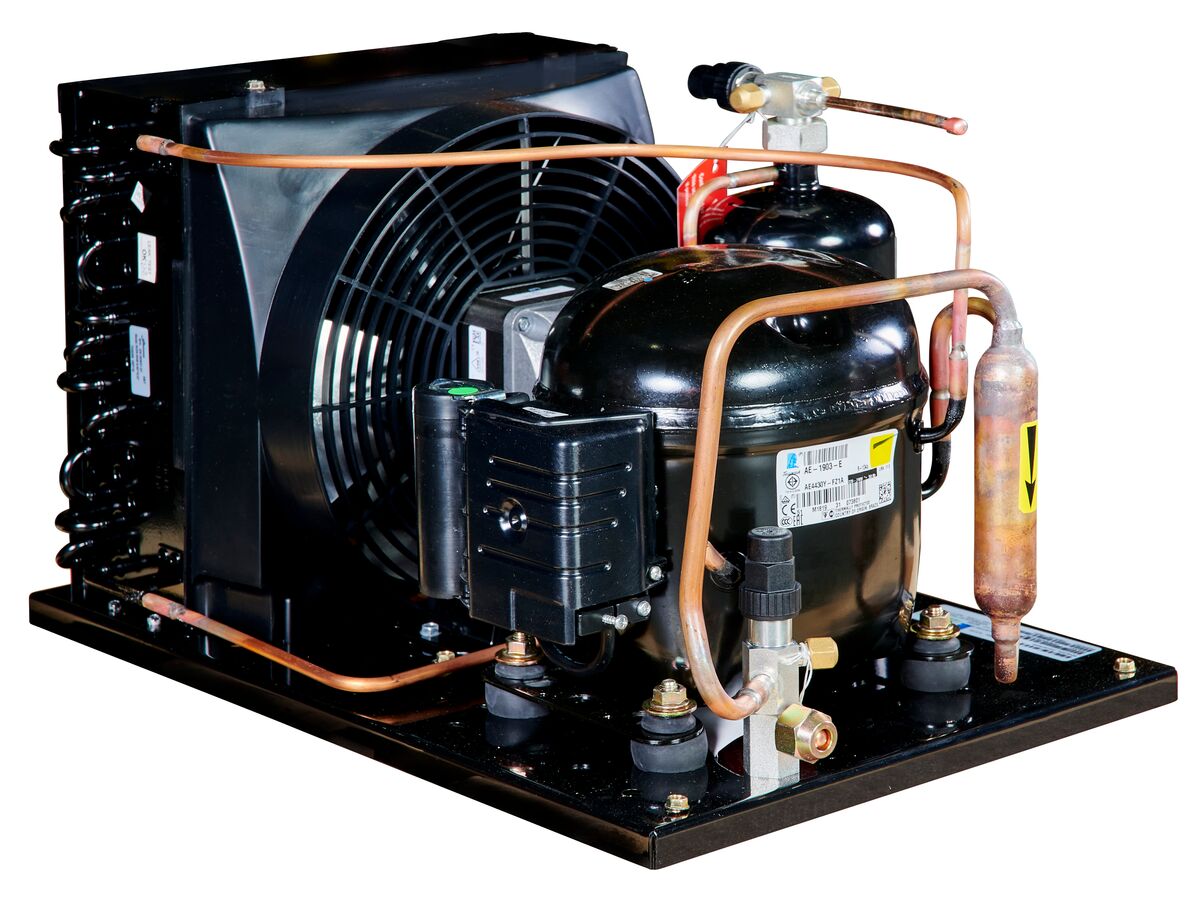

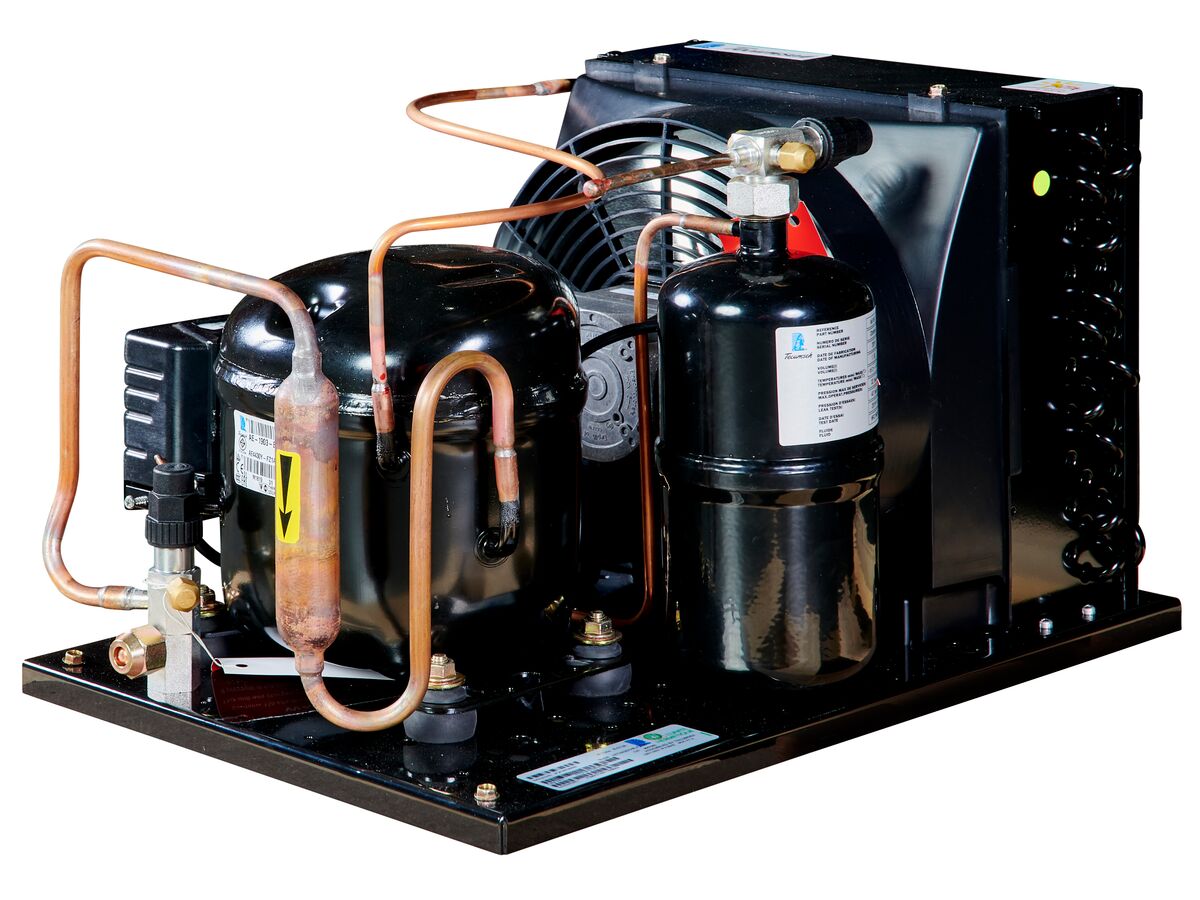

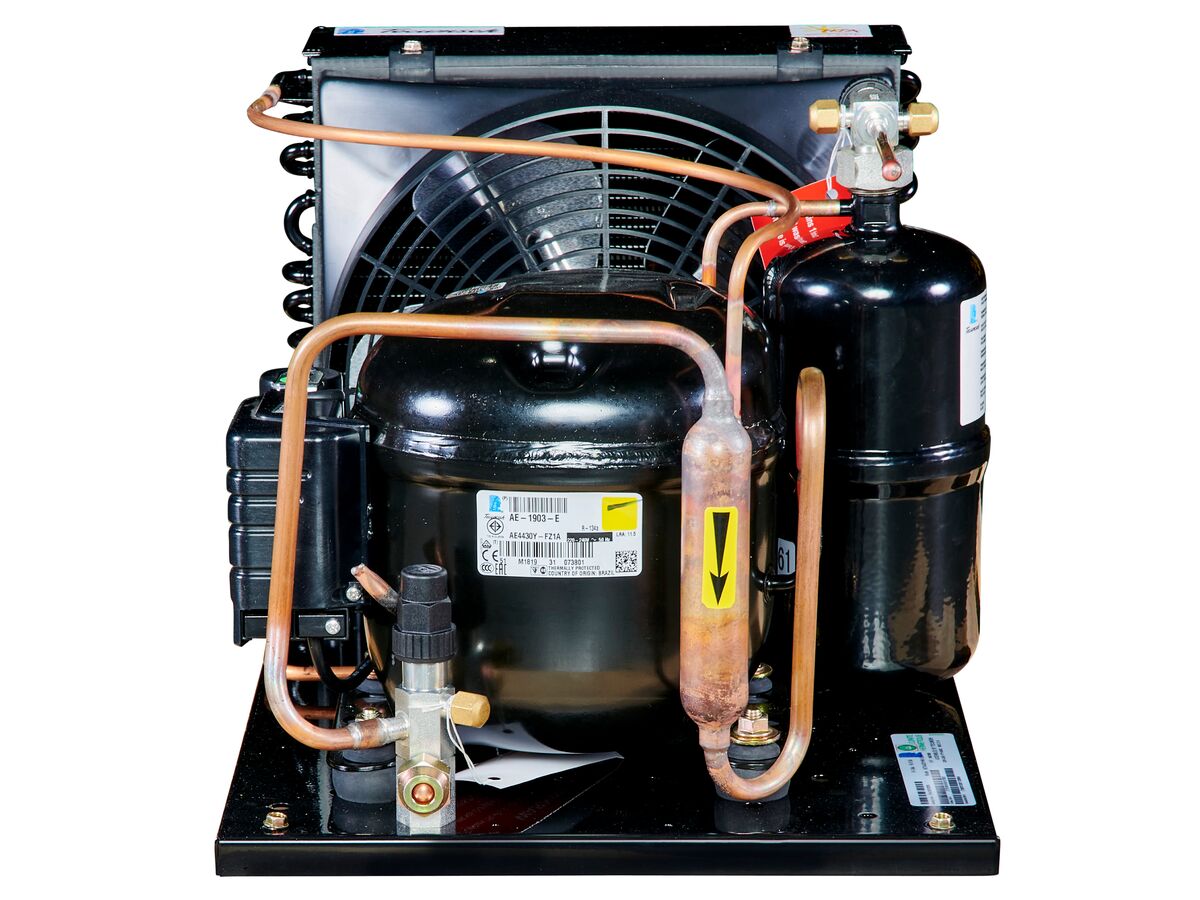

Tecumseh HTA Condensing Unit 1/4HP MHBP 1PH AET4430YHR suitable for R134a/ R513A

Product code: 9507060

View Product Specifications

Refrigerant Type	R513A & R134a
Model Number	AET4430YHR-FZ1A
Compressor Type	Hermetic
Compressor Model	AE4430Y-FZ1A

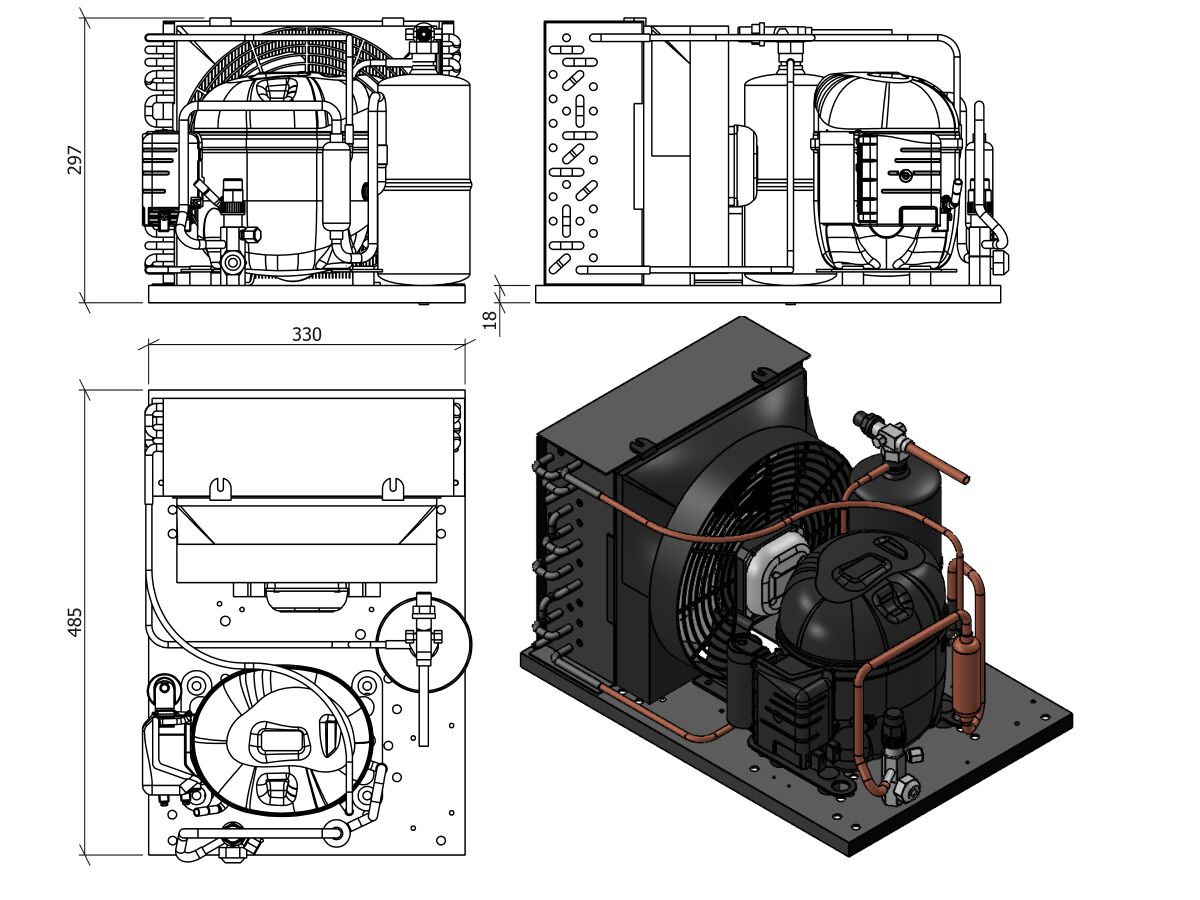

Length	485 mm
Width	330 mm
Height	300 mm
Suction Connection Size	3/8 "
Liquid Connection Size	1/4 "
Fan Diameter	250 mm
Weight	22 kg
Number of Fans	1
Fan MOC	0.4 A
Fan Electrical Supply	240 V
Fan Phase	Single Phase
Receiver Capacity at 80%	0.75 kg
Nominal Horsepower	0.25 HP
Sound Power Level	65 dBA
Compressor MOC	2.3 A
Compressor Electrical Supply	230 V
Compressor Phase	Single Phase
Air Flow Rate	940 m3/h

Product Warranty	1 Years
Warranty Information	1 Year - See Warranty Document in maX for full T&C's
