Tecumseh Condensing Unit 3/8HP R134A MHBP AET4450YHR

R513A Approval Sticker

Tecumseh Condensing Unit 3/8HP R134A MHBP AET4450YHR

Tecumseh Condensing Unit 3/8HP R134A MHBP AET4450YHR

Tecumseh Condensing Unit 3/8HP R134A MHBP AET4450YHR

Tecumseh 'Made Like No Other'

Tecumseh 'Made Like No Other' - The Lab

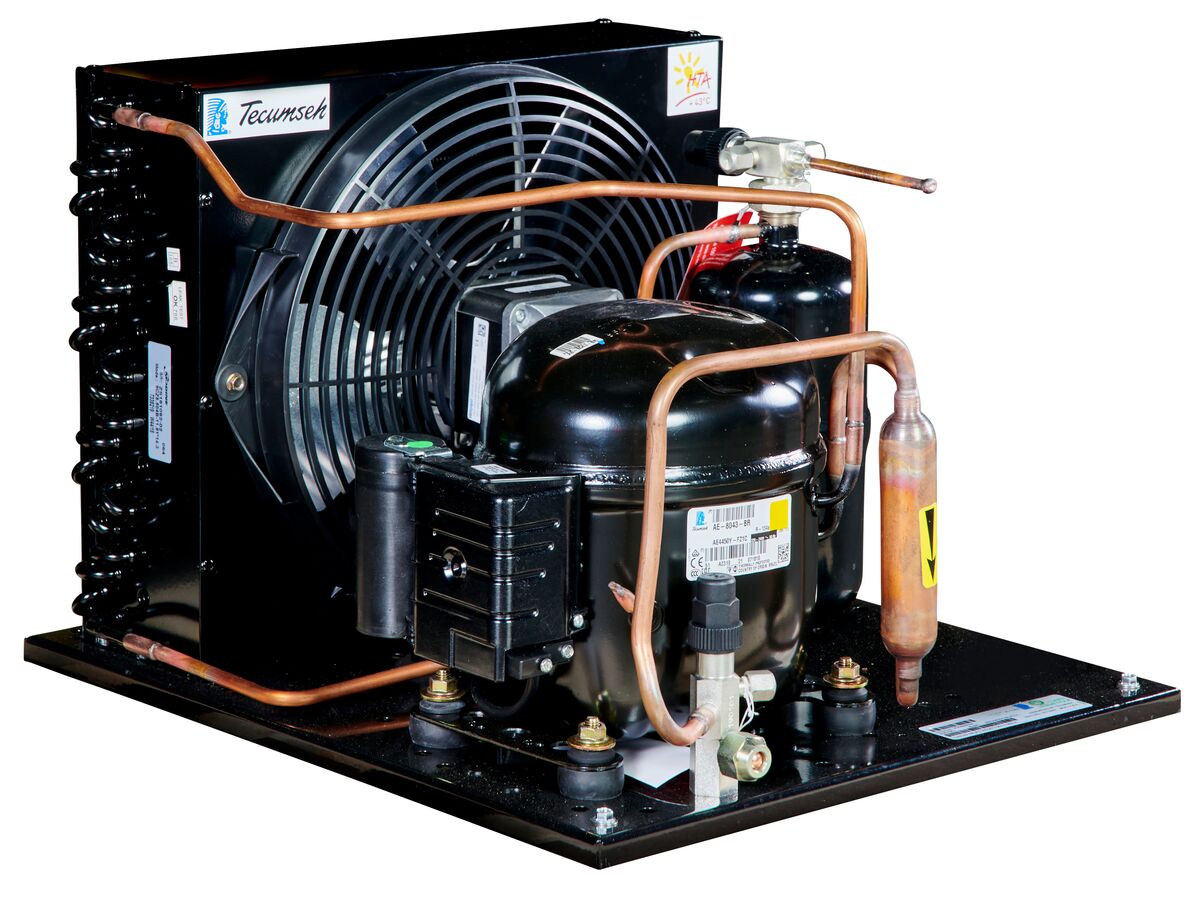

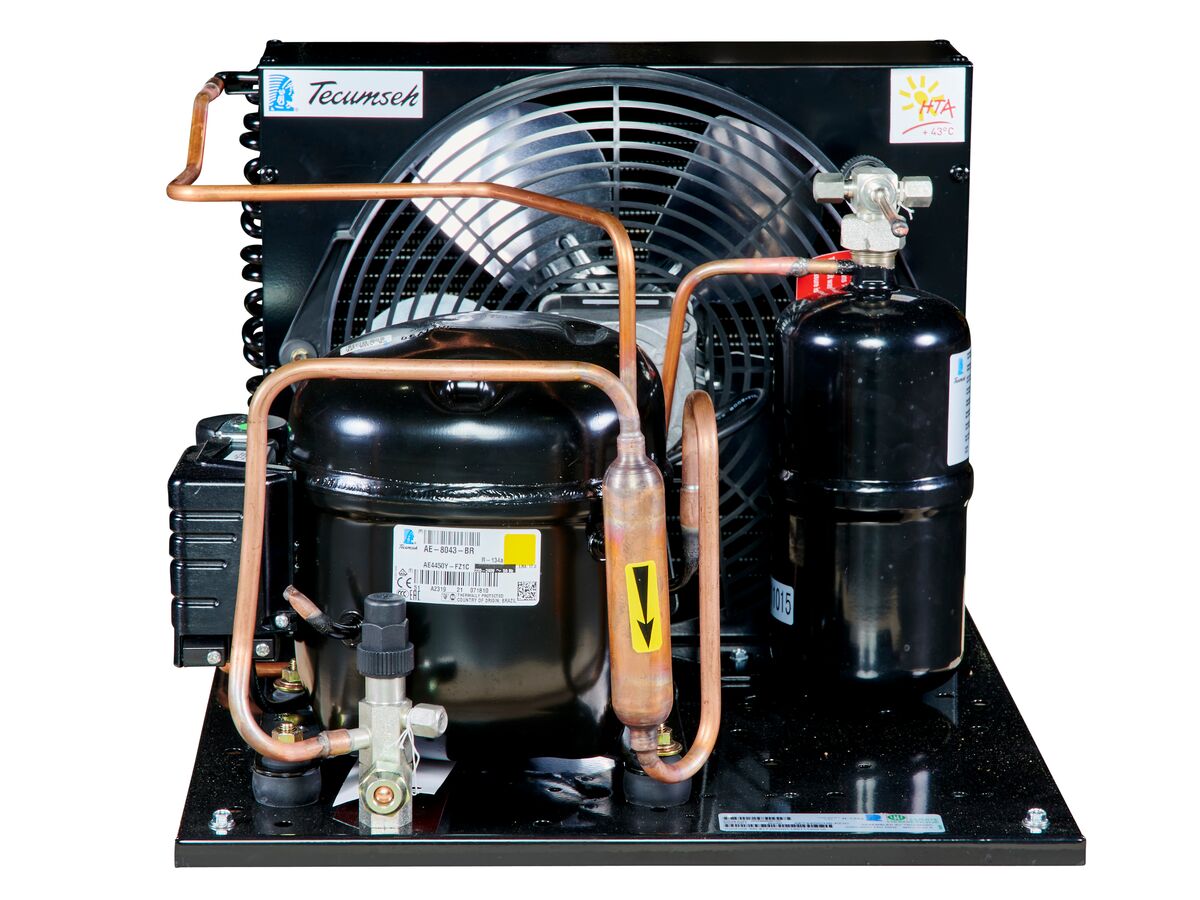

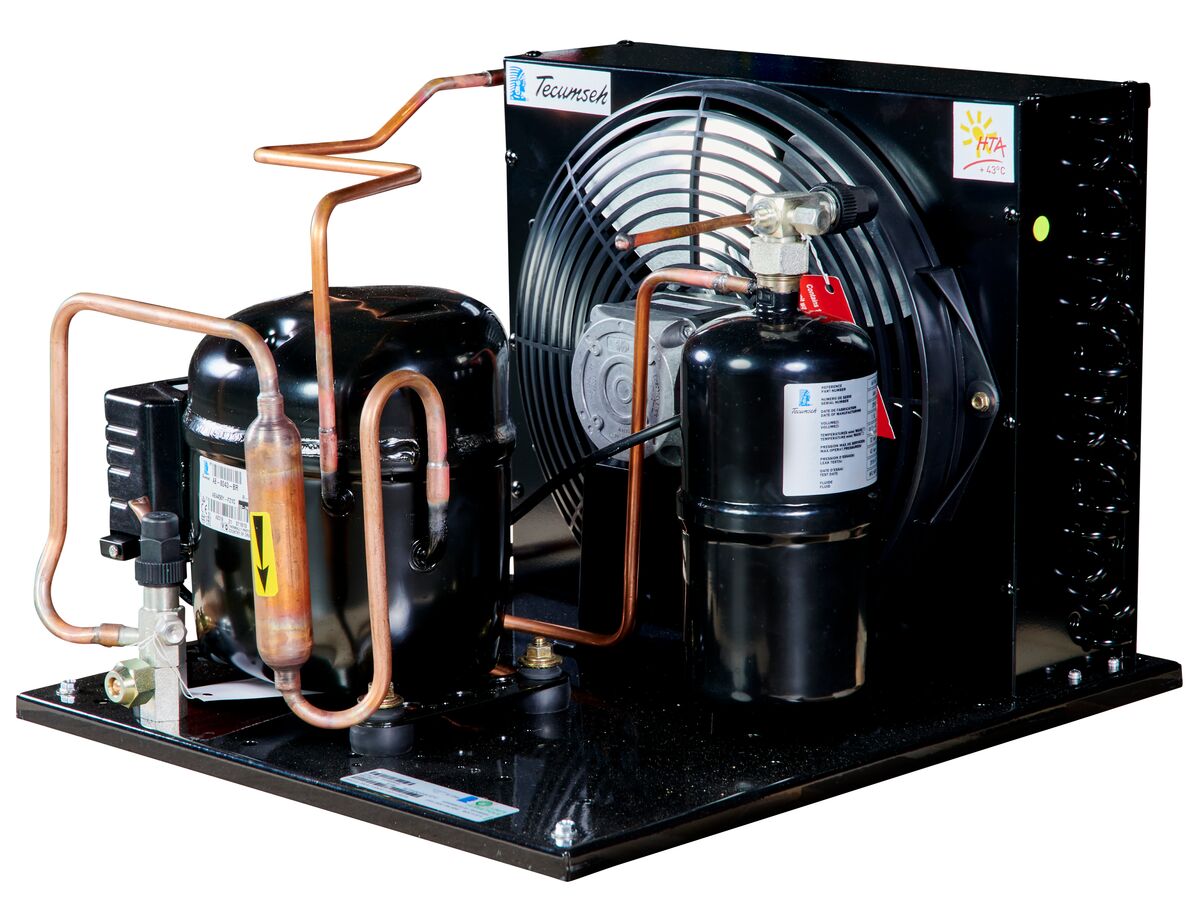

Tecumseh HTA Condensing Unit 3/8HP MHBP 1PH AET4450YHR suitable for R134a/ R513A

Product code: 9507061

View Product Specifications

Model Number	AET4450YHR-FZ1C
Refrigerant Type	R513A & R134a
Compressor Type	Hermetic
Compressor Model	AE4450Y-FZ1C

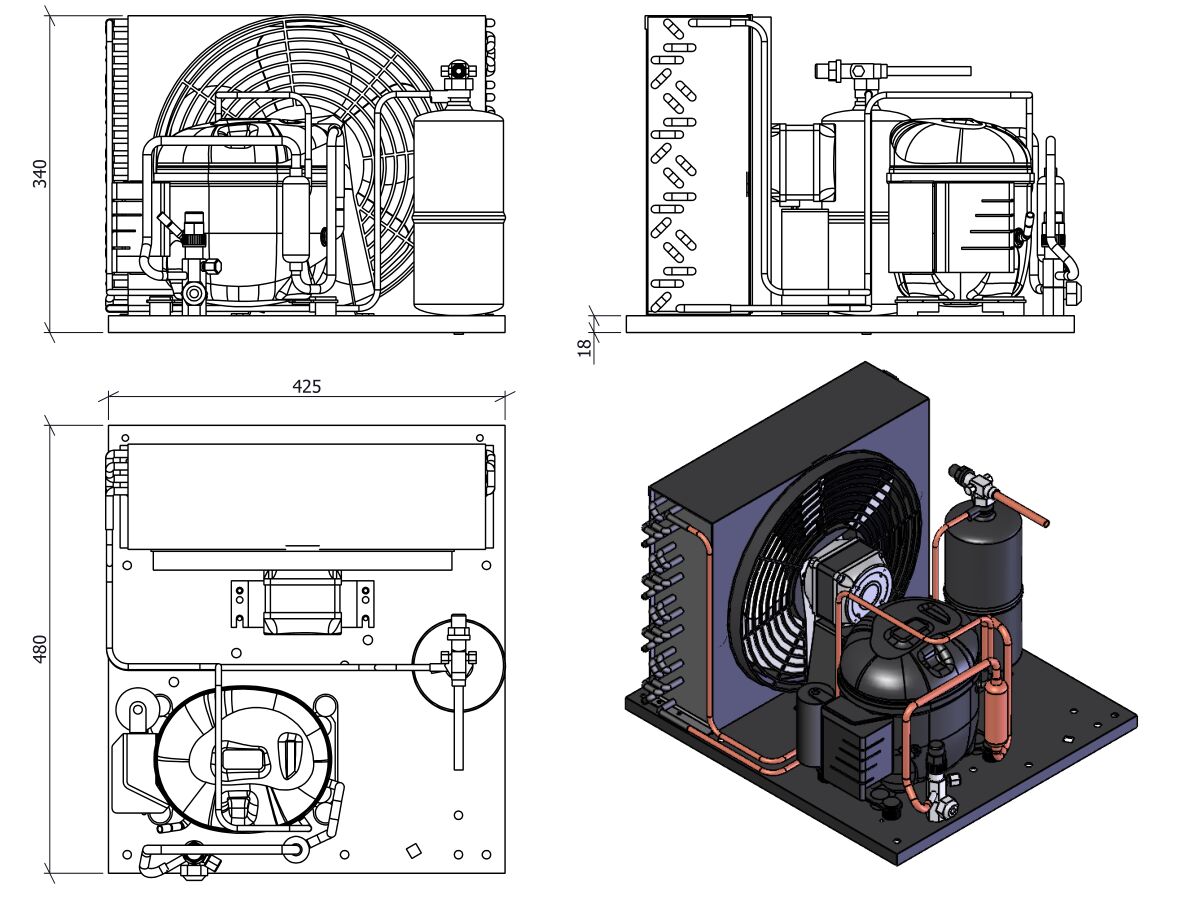

Length	480 mm
Width	425 mm
Height	340 mm
Suction Connection Size	3/8 "
Liquid Connection Size	1/4 "
Fan Diameter	300 mm
Weight	25 kg
Number of Fans	1
Fan MOC	0.62 A
Fan Electrical Supply	240 V
Fan Phase	Single Phase
Receiver Capacity at 80%	0.75 kg
Nominal Horsepower	0.38 HP
Sound Power Level	70 dBA
Compressor MOC	3.7 A
Compressor Electrical Supply	230 V
Compressor Phase	Single Phase
Air Flow Rate	1400 m3/h

Product Warranty	1 Years
Warranty Information	1 Year - See Warranty Document in maX for full T&C's
