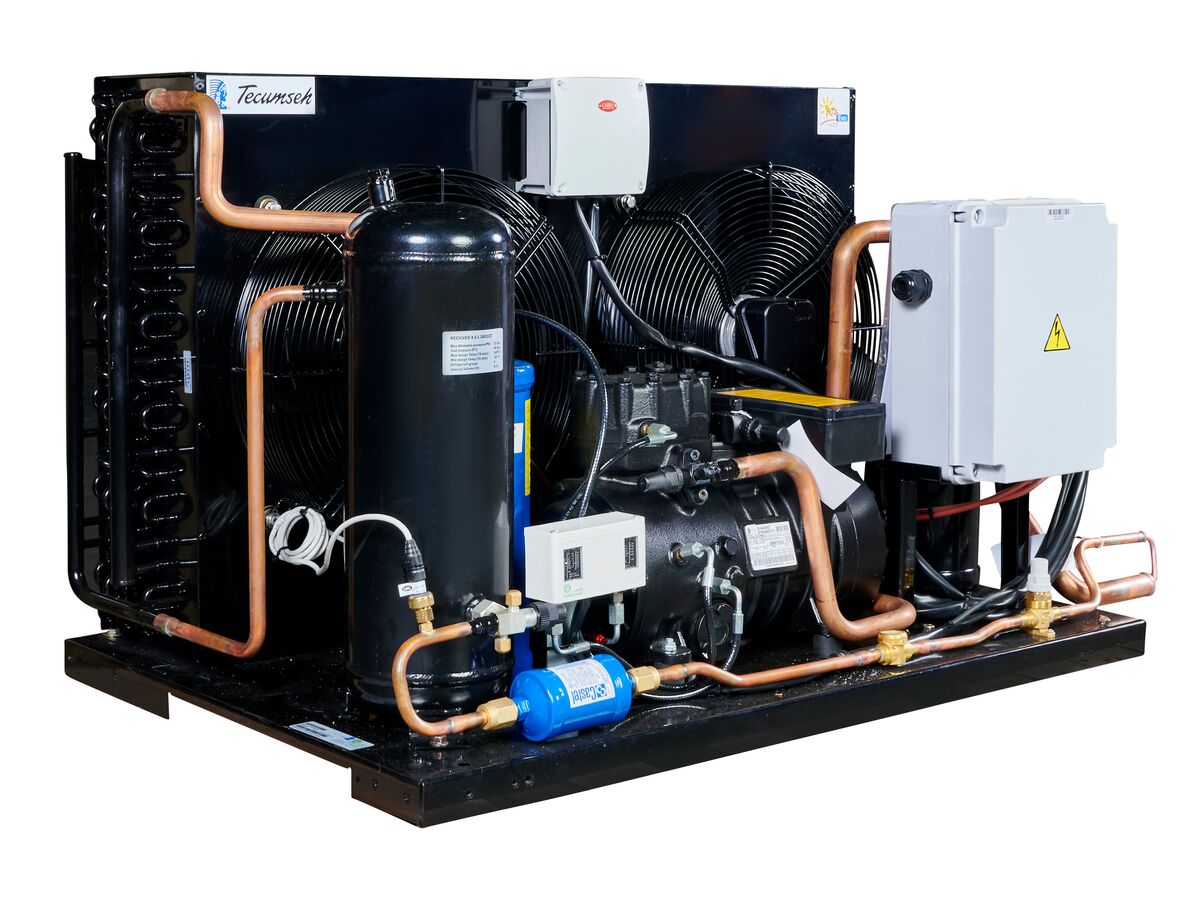

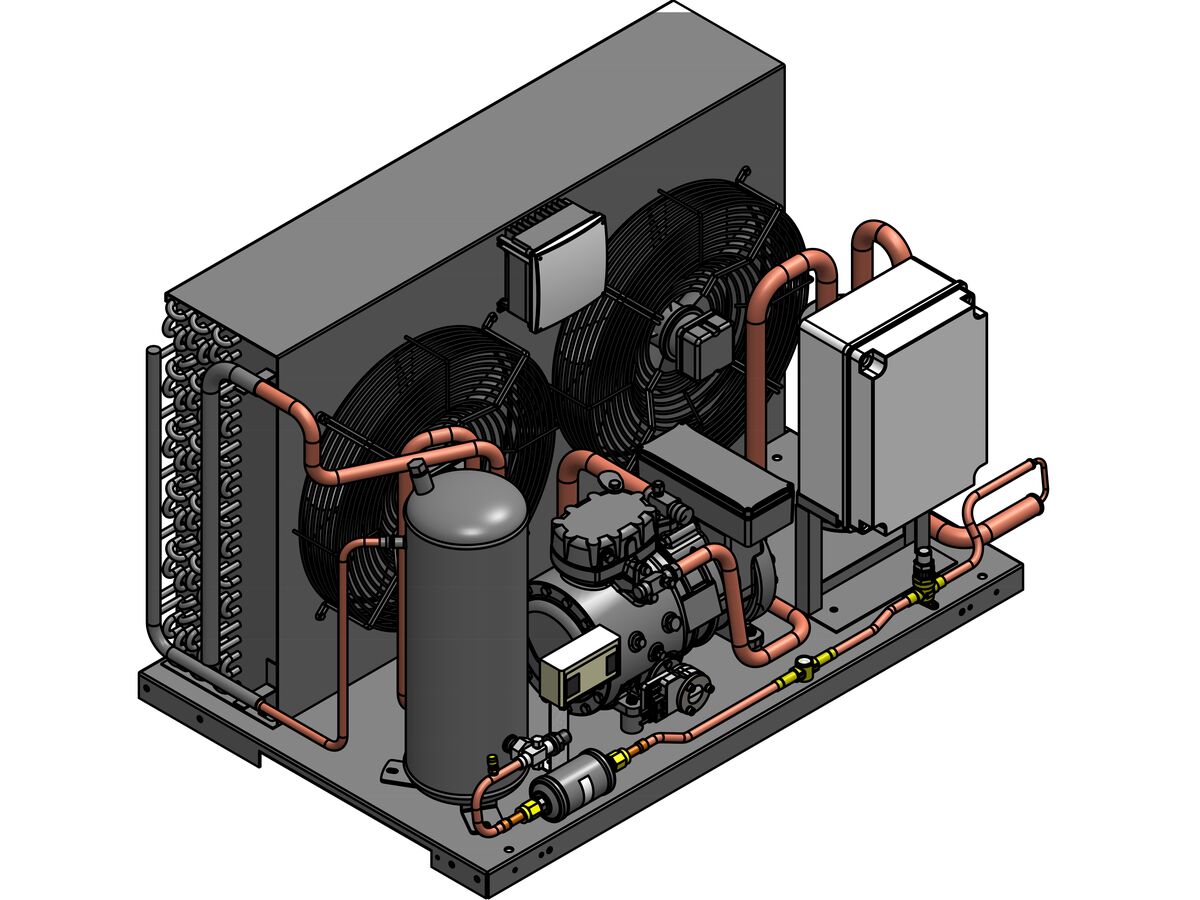

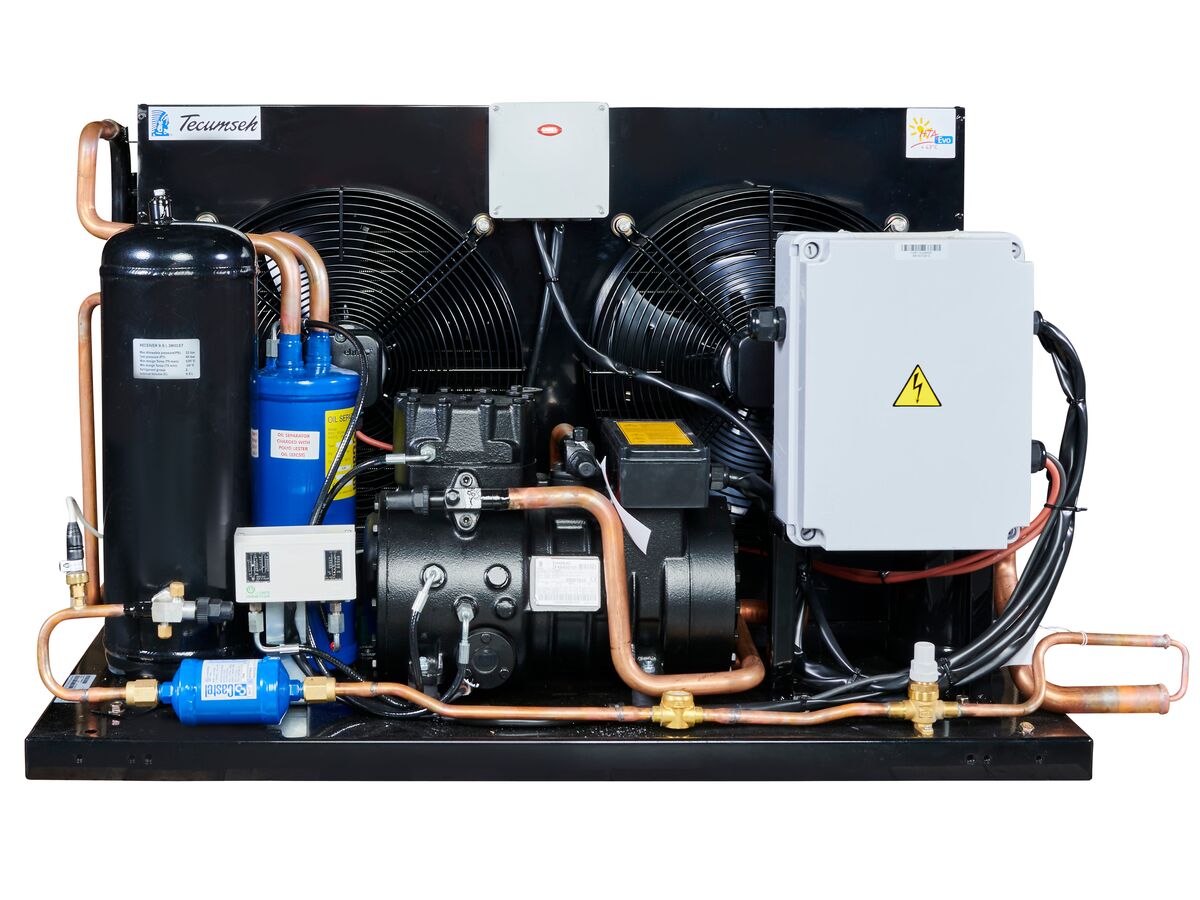

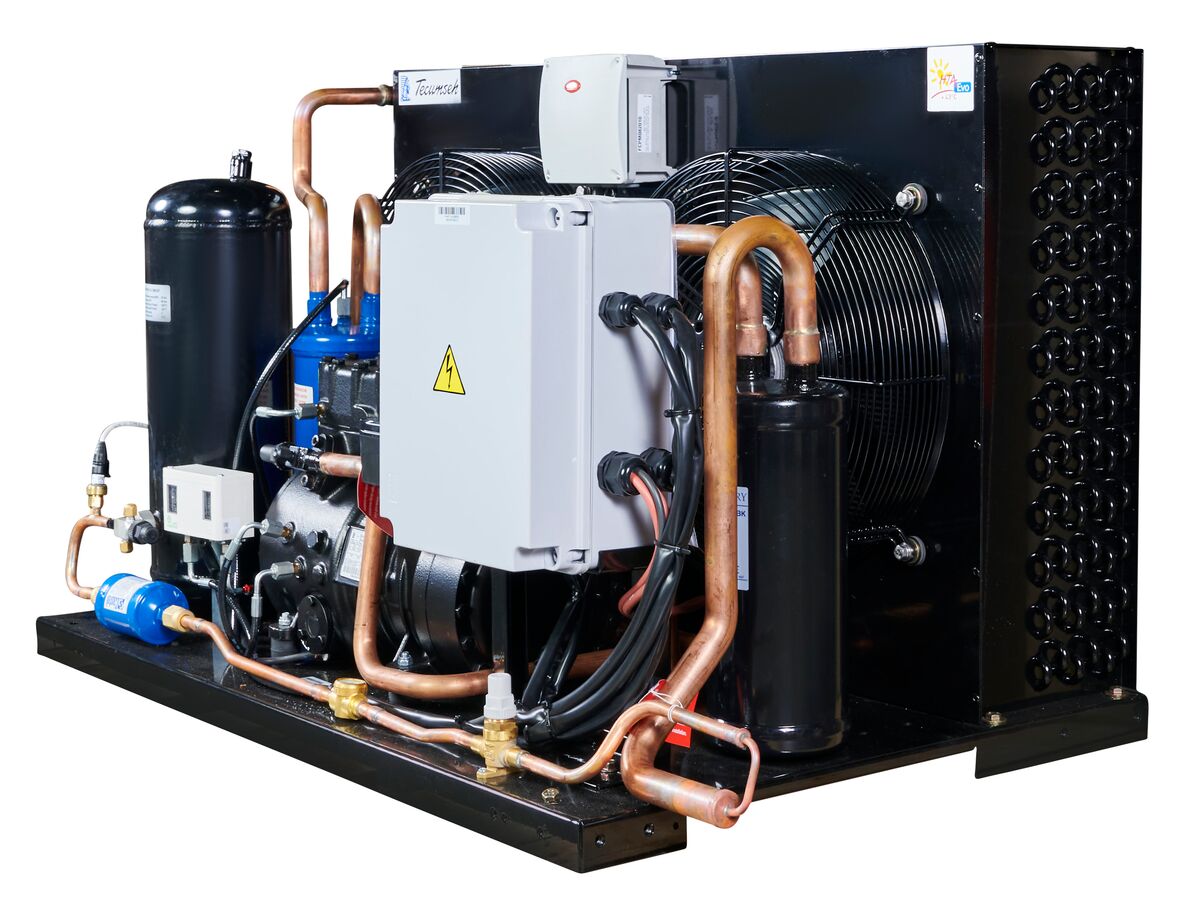

Tecumseh Semi Hermetic EVO Condensing Unit SHT4564ZHR-TZ 3 Phase

Product code: 3506014

View Product Specifications

Tecumseh

The range of Tecumseh semi-hermetic condensing units is fully fitted and fully wired to make installation fast and efficient. They have been designed to operate efficiently in both the hot and cold extremes of the Australian environment. The range is designed for R134a, R404A, R407F and R507 and can be applied in both low and medium temperature applications.

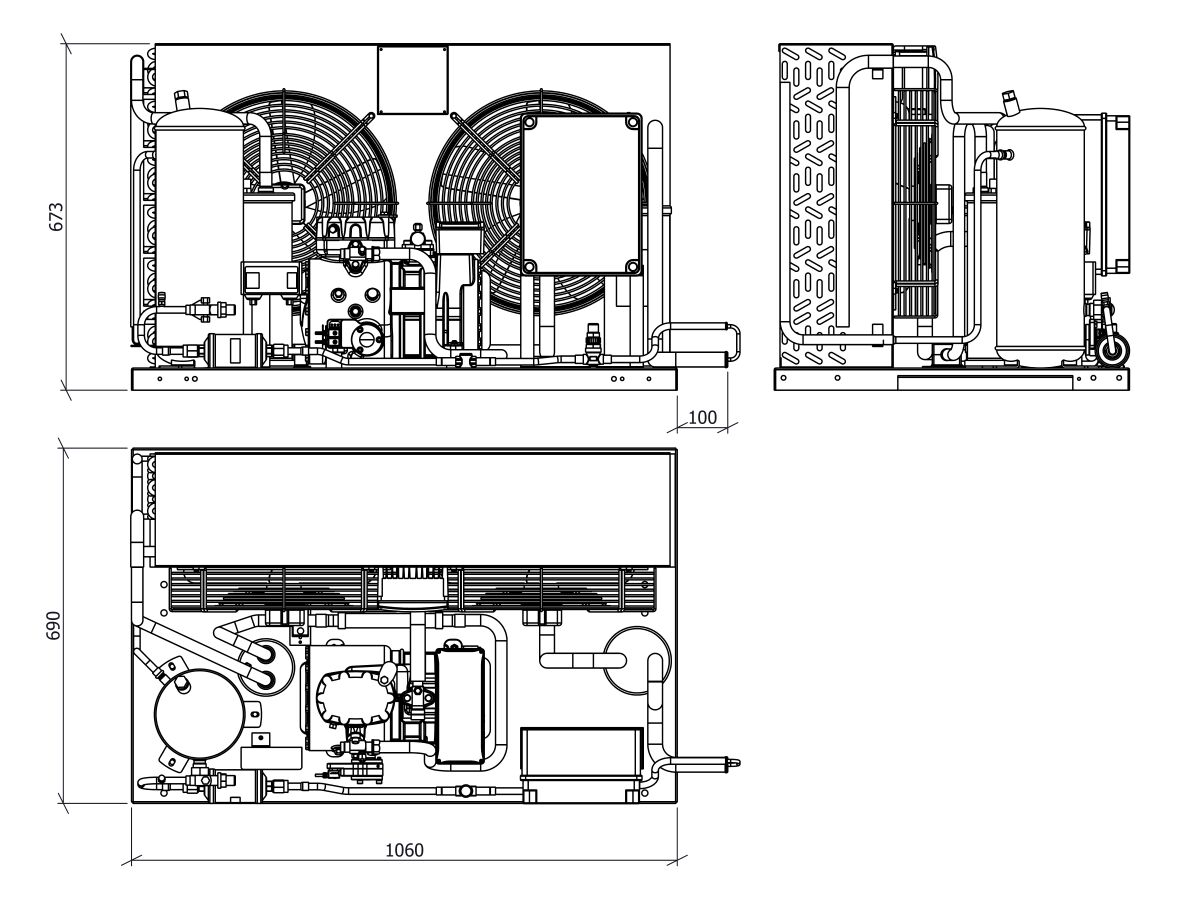

Size and Dimensions

Length	1060 mm
Width	690 mm
Height	673 mm
Connection Size (Liquid)	1/2"
Connection Size (Suction)	1-1/8"
Weight (Net)	131 kg

Inclusions and Exclusions

Items Sold Separately	Weathershield Cover
	Capacity Control
Inclusions	HP/LP control
	Flexible Control Lines
	Fan Speed Control
	Oil Separator
	Suction Accumulator
	Liquid Line Filter Drier
	Suction Line Filter Drier
	Liquid Line Sight Glass
	Oil Protection
	Oil Monitoring on Larger Models
	Sump Heater
	Compressor Thermal Overload
	Electronic Overload
	Anti Short Cycle Timer
	Phase Protection
	Discharge Vibration Eliminator

Features

	Large Condenser
	Fully Wired electrical enclosure
	Carel fan speed control fitted
	Suction accumulator fitted
	Automatic reset HP/LP control fitted
	Liquid line with filter drier and moisture indicator fitted
	Oil separator fitted
	Ebm condenser fans
	Fully Wired D.O.L including circuit breakers, contactor, electronic overload and spare DIN rail in an enclosure
	Tecumseh semi-hermetic compressor with electronic protection module
	Powder Coated Condenser
	Condenser Type - Cu/Al
	Fully Wired With Contactors

General Information

Compressor Type	Semi Hermetic
Model Number	SHT4564ZHR-TZ
Compressor Model	SH4564ZYZ
Product Range	SHT

Technical Information

Refrigerant Type	R448A, R449A, R452A
Motor Type	3 Ph
Compressor Horsepower	5 HP
Number of Fans	2
Fan Diameter	400 mm
Fan Air Flow	8470 m3/h
Receiver Capacity kg @ 80%	9.5 kg
Compressor Displacement	16.4 m3/h

Temperature Information

Operating Temperature (Ambient)	43 Deg C

Power Information

Compressor Phase	3
Compressor Electrical Supply	400V
Compressor Hertz	50Hz
Compressor MOC	13.2 A
Fan Phase	1
Fan Electrical Supply	220-240V
Fan Electrical Hertz	50Hz
Fan MOC	1.46 A
Sound Power Level	70 dBA

R134a Capacity Data

Specifications	EN13215 Rating Standard, Midpoint Temperature Reference
35 Deg C @ -20 Deg C (SST)	3315 W
35 Deg C @ -15 Deg C (SST)	4238 W
35 Deg C @ -10 Deg C (SST)	5332 W
35 Deg C @ -5 Deg C (SST)	6605 W
35 Deg C @ 0 Deg C (SST)	8065 W
35 Deg C @ 5 Deg C (SST)	9714 W
35 Deg C @ 10 Deg C (SST)	11558 W
38 Deg C @ -20 Deg C (SST)	3162 W
38 Deg C @ -15 Deg C (SST)	4057 W
38 Deg C @ -10 Deg C (SST)	5113 W
38 Deg C @ -5 Deg C (SST)	6342 W
38 Deg C @ 0 Deg C (SST)	7749 W
38 Deg C @ 5 Deg C (SST)	9341 W
38 Deg C @ 10 Deg C (SST)	11120 W
43 Deg C @ -20 Deg C (SST)	2915 W
Notes	*Additional Cooling required

R404A Capacity Data

Specifications	EN13215 Rating Standard, Midpoint Temperature Reference
32 Deg C @ 0 Deg C (SST)	13241 W
32 Deg C @ 5 Deg C (SST)	15410 W
35 Deg C @ -30 Deg C (SST)	3691 W
35 Deg C @ -25 Deg C (SST)	4783 W
35 Deg C @ -20 Deg C (SST)	6025 W
35 Deg C @ -15 Deg C (SST)	7425 W
35 Deg C @ -10 Deg C (SST)	8989 W
35 Deg C @ -5 Deg C (SST)	10720 W
35 Deg C @ 0 Deg C (SST)	12619 W
35 Deg C @ 5 Deg C (SST)	14686 W
38 Deg C @ -30 Deg C (SST)	3491 W
38 Deg C @ -25 Deg C (SST)	4541 W
38 Deg C @ -20 Deg C (SST)	5728 W
38 Deg C @ -15 Deg C (SST)	7061 W
38 Deg C @ -10 Deg C (SST)	8548 W
38 Deg C @ -5 Deg C (SST)	10192 W
38 Deg C @ 0 Deg C (SST)	11995 W
38 Deg C @ 5 Deg C (SST)	13960 W
43 Deg C @ -5 Deg C (SST)	9311 W
43 Deg C @ 0 Deg C (SST)	10954 W
Notes	*Additional Cooling required

R448A Capacity Data

32 Deg C @ -40 Deg C (SST)	2002 W*
32 Deg C @ -35 Deg C (SST)	2827 W*
32 Deg C @ -30 Deg C (SST)	3777 W
32 Deg C @ -25 Deg C (SST)	4643 W
32 Deg C @ -20 Deg C (SST)	6174 W
32 Deg C @ -15 Deg C (SST)	7676 W
32 Deg C @ -10 Deg C (SST)	9412 W
32 Deg C @ -5 Deg C (SST)	11017 W
32 Deg C @ 0 Deg C (SST)	13657 W
32 Deg C @ 5 Deg C (SST)	16194 W
32 Deg C @ 10 Deg C (SST)	-
32 Deg C @ 15 Deg C (SST)	-
35 Deg C @ -40 Deg C (SST)	1859 W*
35 Deg C @ -35 Deg C (SST)	2656 W*
35 Deg C @ -30 Deg C (SST)	3570 W
35 Deg C @ -25 Deg C (SST)	4631 W
35 Deg C @ -20 Deg C (SST)	5870 W
35 Deg C @ -15 Deg C (SST)	7313 W
35 Deg C @ -10 Deg C (SST)	8982 W
35 Deg C @ -5 Deg C (SST)	10898 W
35 Deg C @ 0 Deg C (SST)	13077 W
35 Deg C @ 5 Deg C (SST)	15532 W
35 Deg C @ 10 Deg C (SST)	-
35 Deg C @ 15 Deg C (SST)	-
38 Deg C @ -40 Deg C (SST)	1719 W*
38 Deg C @ -35 Deg C (SST)	2488 W*
38 Deg C @ -30 Deg C (SST)	3366 W*
38 Deg C @ -25 Deg C (SST)	4383 W
38 Deg C @ -20 Deg C (SST)	5569 W
38 Deg C @ -15 Deg C (SST)	6953 W
38 Deg C @ -10 Deg C (SST)	8556 W
38 Deg C @ -5 Deg C (SST)	10400 W
38 Deg C @ 0 Deg C (SST)	12502 W
38 Deg C @ 5 Deg C (SST)	14875 W
38 Deg C @ 10 Deg C (SST)	-
38 Deg C @ 15 Deg C (SST)	-
43 Deg C @ -40 Deg C (SST)	1494 W*
43 Deg C @ -35 Deg C (SST)	2217 W*
43 Deg C @ -30 Deg C (SST)	3033 W*
43 Deg C @ -25 Deg C (SST)	3977 W*
43 Deg C @ -20 Deg C (SST)	5077 W
43 Deg C @ -15 Deg C (SST)	6362 W
43 Deg C @ -10 Deg C (SST)	7856 W
43 Deg C @ -5 Deg C (SST)	9581 W
43 Deg C @ 0 Deg C (SST)	11555 W
43 Deg C @ 5 Deg C (SST)	13793 W
43 Deg C @ 10 Deg C (SST)	-
43 Deg C @ 15 Deg C (SST)	-

R449A Capacity Data

32 Deg C @ -40 Deg C (SST)	1979 W*
32 Deg C @ -35 Deg C (SST)	2799 W*
32 Deg C @ -30 Deg C (SST)	3742 W
32 Deg C @ -25 Deg C (SST)	4629 W
32 Deg C @ -20 Deg C (SST)	6120 W
32 Deg C @ -15 Deg C (SST)	7609 W
32 Deg C @ -10 Deg C (SST)	9329 W
32 Deg C @ -5 Deg C (SST)	10973 W
32 Deg C @ 0 Deg C (SST)	13534 W
32 Deg C @ 5 Deg C (SST)	16047 W
32 Deg C @ 10 Deg C (SST)	-
32 Deg C @ 15 Deg C (SST)	-
35 Deg C @ -40 Deg C (SST)	1838 W*
35 Deg C @ -35 Deg C (SST)	2630 W*
35 Deg C @ -30 Deg C (SST)	3537 W
35 Deg C @ -25 Deg C (SST)	4590 W
35 Deg C @ -20 Deg C (SST)	5819 W
35 Deg C @ -15 Deg C (SST)	7249 W
35 Deg C @ -10 Deg C (SST)	8903 W
35 Deg C @ -5 Deg C (SST)	10801 W
35 Deg C @ 0 Deg C (SST)	12960 W
35 Deg C @ 5 Deg C (SST)	15392 W
35 Deg C @ 10 Deg C (SST)	-
35 Deg C @ 15 Deg C (SST)	-
38 Deg C @ -40 Deg C (SST)	1699 W*
38 Deg C @ -35 Deg C (SST)	2464 W*
38 Deg C @ -30 Deg C (SST)	3335 W*
38 Deg C @ -25 Deg C (SST)	4344 W
38 Deg C @ -20 Deg C (SST)	5521 W
38 Deg C @ -15 Deg C (SST)	6892 W
38 Deg C @ -10 Deg C (SST)	8481 W
38 Deg C @ -5 Deg C (SST)	10308 W
38 Deg C @ 0 Deg C (SST)	12390 W
38 Deg C @ 5 Deg C (SST)	14741 W
38 Deg C @ 10 Deg C (SST)	-
38 Deg C @ 15 Deg C (SST)	-
43 Deg C @ -40 Deg C (SST)	1476 W*
43 Deg C @ -35 Deg C (SST)	2195 W*
43 Deg C @ -30 Deg C (SST)	3006 W*
43 Deg C @ -25 Deg C (SST)	3942 W*
43 Deg C @ -20 Deg C (SST)	5034 W
43 Deg C @ -15 Deg C (SST)	6307 W
43 Deg C @ -10 Deg C (SST)	7788 W
43 Deg C @ -5 Deg C (SST)	9496 W
43 Deg C @ 0 Deg C (SST)	11451 W
43 Deg C @ 5 Deg C (SST)	13667 W
43 Deg C @ 10 Deg C (SST)	-
43 Deg C @ 15 Deg C (SST)	-

R450A Capacity Data

32 Deg C @ -25 Deg C (SST)	2916 W
32 Deg C @ -5 Deg C (SST)	5715 W

R452A Capacity Data

32 Deg C @ -40 Deg C (SST)	2024 W*
32 Deg C @ -35 Deg C (SST)	2768 W*
32 Deg C @ -30 Deg C (SST)	3677 W
32 Deg C @ -25 Deg C (SST)	10295 W
32 Deg C @ -20 Deg C (SST)	6037 W
32 Deg C @ -15 Deg C (SST)	7501 W
32 Deg C @ -10 Deg C (SST)	9157 W
32 Deg C @ -5 Deg C (SST)	4503 W
32 Deg C @ 0 Deg C (SST)	13038 W
32 Deg C @ 5 Deg C (SST)	15252 W
32 Deg C @ 10 Deg C (SST)	-
32 Deg C @ 15 Deg C (SST)	-
35 Deg C @ -40 Deg C (SST)	1864 W*
35 Deg C @ -35 Deg C (SST)	2590 W*
35 Deg C @ -30 Deg C (SST)	3468 W*
35 Deg C @ -25 Deg C (SST)	4510 W
35 Deg C @ -20 Deg C (SST)	5726 W
35 Deg C @ -15 Deg C (SST)	7121 W
35 Deg C @ -10 Deg C (SST)	8698 W
35 Deg C @ -5 Deg C (SST)	10455 W
35 Deg C @ 0 Deg C (SST)	12392 W
35 Deg C @ 5 Deg C (SST)	14502 W
35 Deg C @ 10 Deg C (SST)	-
35 Deg C @ 15 Deg C (SST)	-
38 Deg C @ -40 Deg C (SST)	1705 W*
38 Deg C @ -35 Deg C (SST)	2413 W*
38 Deg C @ -30 Deg C (SST)	3260 W*
38 Deg C @ -25 Deg C (SST)	4259 W
38 Deg C @ -20 Deg C (SST)	5418 W
38 Deg C @ -15 Deg C (SST)	6745 W
38 Deg C @ -10 Deg C (SST)	8242 W
38 Deg C @ -5 Deg C (SST)	9912 W
38 Deg C @ 0 Deg C (SST)	11752 W
38 Deg C @ 5 Deg C (SST)	13758 W
38 Deg C @ 10 Deg C (SST)	-
38 Deg C @ 15 Deg C (SST)	-
43 Deg C @ -40 Deg C (SST)	1450 W*
43 Deg C @ -35 Deg C (SST)	2130 W*
43 Deg C @ -30 Deg C (SST)	2926 W*
43 Deg C @ -25 Deg C (SST)	3852 W*
43 Deg C @ -20 Deg C (SST)	4918 W
43 Deg C @ -15 Deg C (SST)	6132 W
43 Deg C @ -10 Deg C (SST)	7500 W
43 Deg C @ -5 Deg C (SST)	9023 W
43 Deg C @ 0 Deg C (SST)	10704 W
43 Deg C @ 5 Deg C (SST)	12541 W
43 Deg C @ 10 Deg C (SST)	-
43 Deg C @ 15 Deg C (SST)	-

R513A Capacity Data

32 Deg C @ -40 Deg C (SST)	-
32 Deg C @ -35 Deg C (SST)	-
32 Deg C @ -30 Deg C (SST)	-
32 Deg C @ -20 Deg C (SST)	3786 W
32 Deg C @ -15 Deg C (SST)	4745 W
32 Deg C @ -10 Deg C (SST)	5879 W
32 Deg C @ -5 Deg C (SST)	7067 W
32 Deg C @ 0 Deg C (SST)	8693 W
32 Deg C @ 5 Deg C (SST)	10375 W
32 Deg C @ 10 Deg C (SST)	12241 W
32 Deg C @ 15 Deg C (SST)	-
35 Deg C @ -40 Deg C (SST)	-
35 Deg C @ -35 Deg C (SST)	-
35 Deg C @ -30 Deg C (SST)	-
35 Deg C @ -25 Deg C (SST)	-
35 Deg C @ -20 Deg C (SST)	3610 W
35 Deg C @ -15 Deg C (SST)	4536 W
35 Deg C @ -10 Deg C (SST)	5630 W
35 Deg C @ -5 Deg C (SST)	6897 W
35 Deg C @ 0 Deg C (SST)	8341 W
35 Deg C @ 5 Deg C (SST)	9962 W
35 Deg C @ 10 Deg C (SST)	11761 W
35 Deg C @ 15 Deg C (SST)	-
38 Deg C @ -40 Deg C (SST)	-
38 Deg C @ -35 Deg C (SST)	-
38 Deg C @ -30 Deg C (SST)	-
38 Deg C @ -25 Deg C (SST)	-
38 Deg C @ -20 Deg C (SST)	3437 W
38 Deg C @ -15 Deg C (SST)	4331 W
38 Deg C @ -10 Deg C (SST)	5385 W
38 Deg C @ -5 Deg C (SST)	6605 W
38 Deg C @ 0 Deg C (SST)	7993 W
38 Deg C @ 5 Deg C (SST)	9553 W
38 Deg C @ 10 Deg C (SST)	11285 W
38 Deg C @ 15 Deg C (SST)	-
43 Deg C @ -40 Deg C (SST)	-
43 Deg C @ -35 Deg C (SST)	-
43 Deg C @ -30 Deg C (SST)	-
43 Deg C @ -25 Deg C (SST)	-
43 Deg C @ -20 Deg C (SST)	3156 W
43 Deg C @ -15 Deg C (SST)	3997 W
43 Deg C @ -10 Deg C (SST)	4985 W
43 Deg C @ -5 Deg C (SST)	6126 W
43 Deg C @ 0 Deg C (SST)	7424 W
43 Deg C @ 5 Deg C (SST)	8883 W
43 Deg C @ 10 Deg C (SST)	10502 W
43 Deg C @ 15 Deg C (SST)	-
