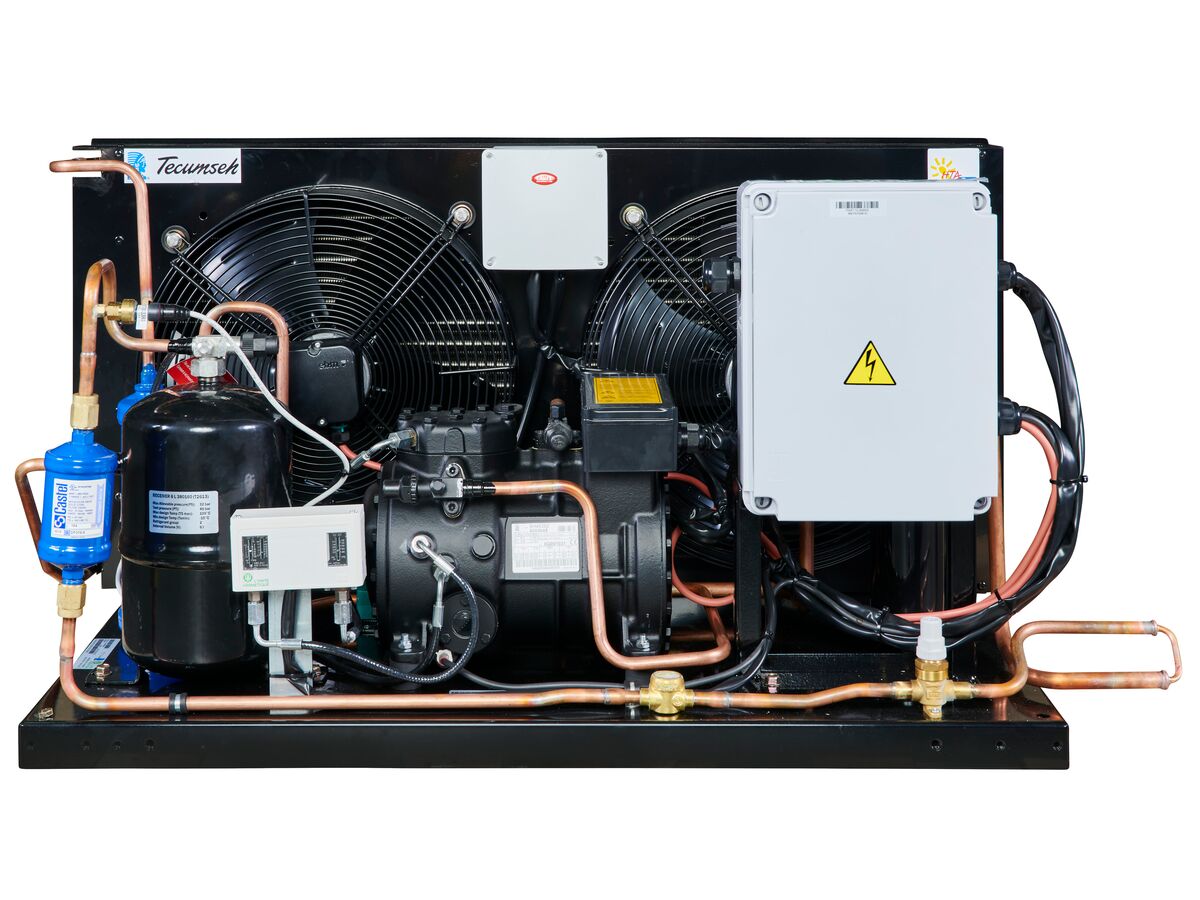

Tecumseh Semi Hermetic EVO Condensing Unit SHT4526ZHR-TZ 3 phase

R448A R449A R452A Approval Sticker

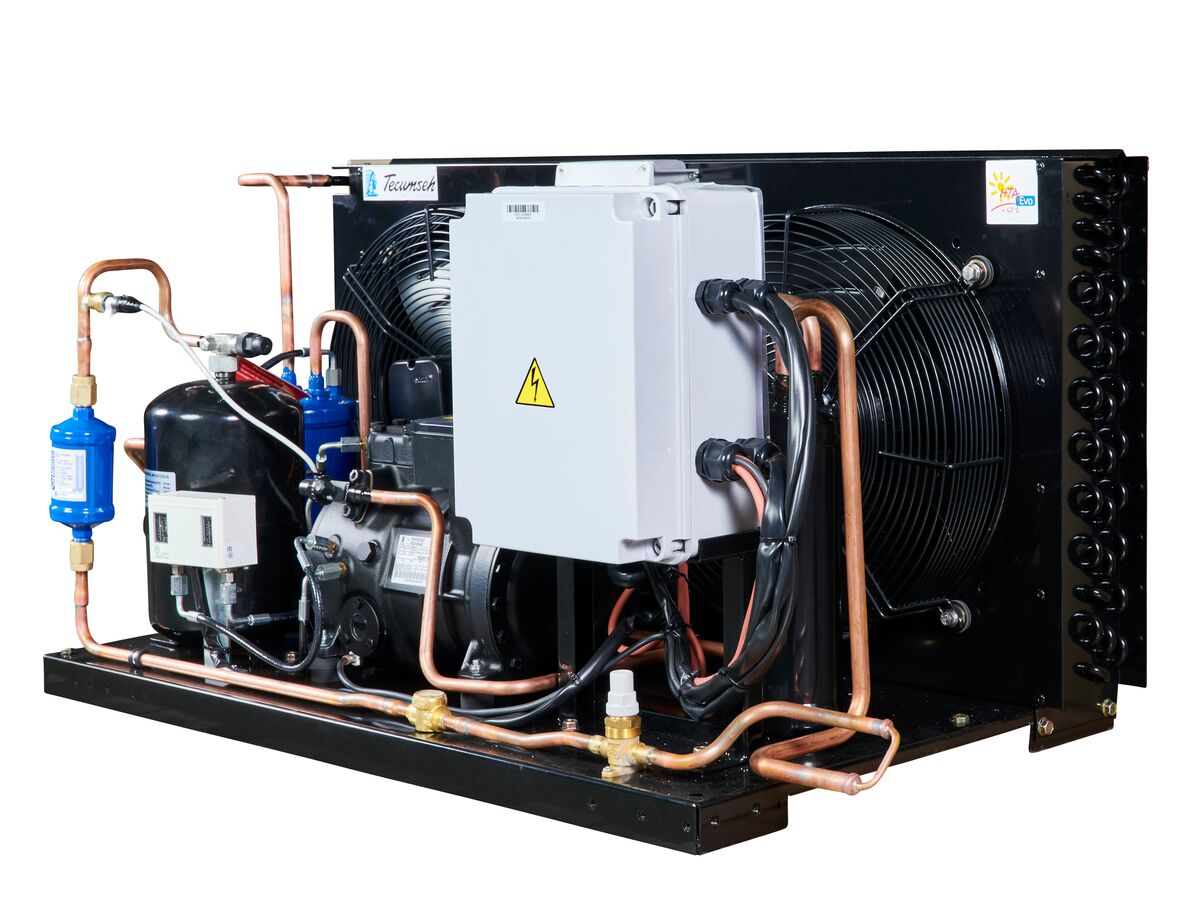

Tecumseh Semi Hermetic EVO Condensing Unit SHT4526ZHR-TZ 3 phase

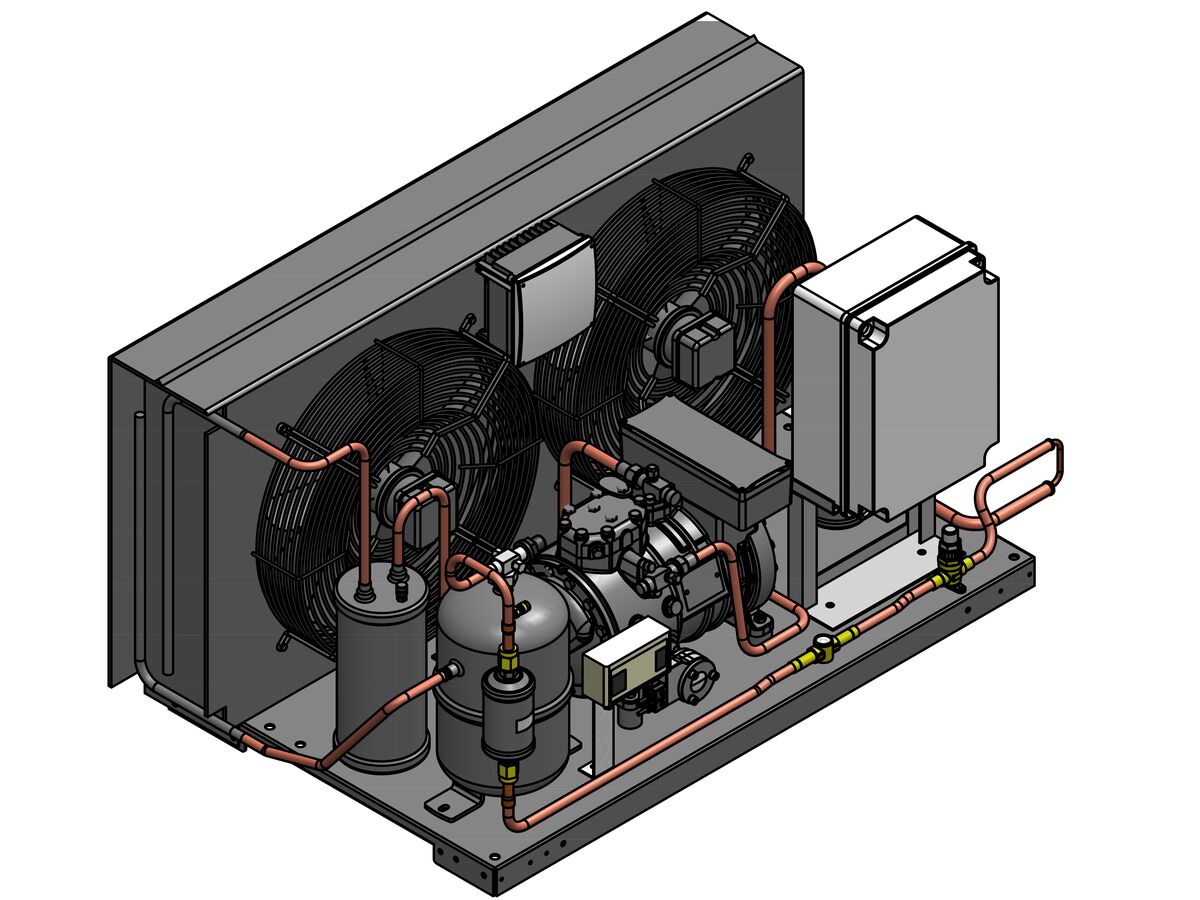

Tecumseh Semi Hermetic EVO Condensing Unit SHT4526ZHR-TZ 3 phase

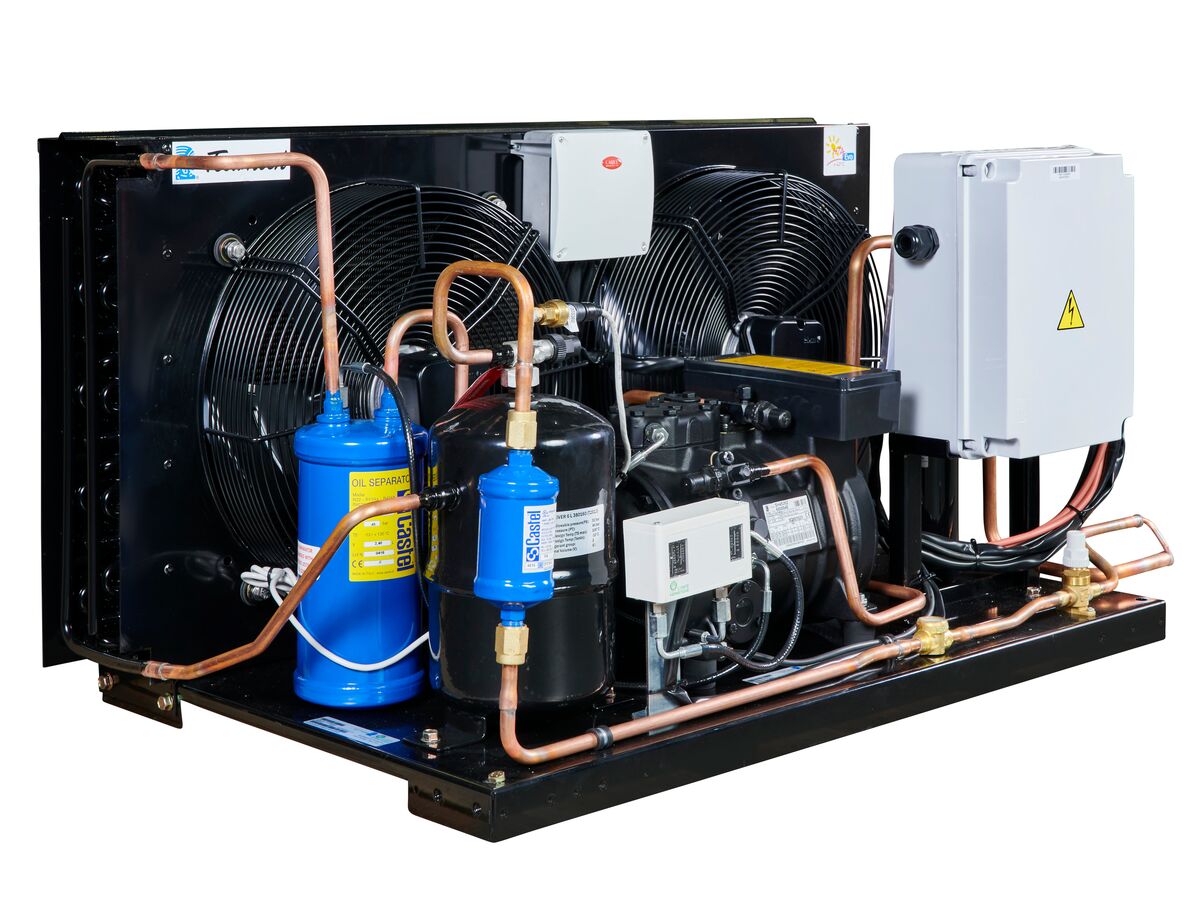

Tecumseh Semi Hermetic EVO Condensing Unit SHT4526ZHR-TZ 3 phase

Tecumseh Semi Hermetic EVO Condensing Unit SHT4526ZHR-TZ 3 phase

Tecumseh 'Made Like No Other'

Tecumseh 'Made Like No Other' - The Lab

Tecumseh Semi Hermetic EVO Condensing Unit SHT4526ZHR-TZ 3 phase

Product code: 3506015

View Product Specifications

Refrigerant Type	R448A & R452A
Model Number	4F65260222
Compressor Type	Semi-Hermetic
Compressor Model	SH4526ZYZ

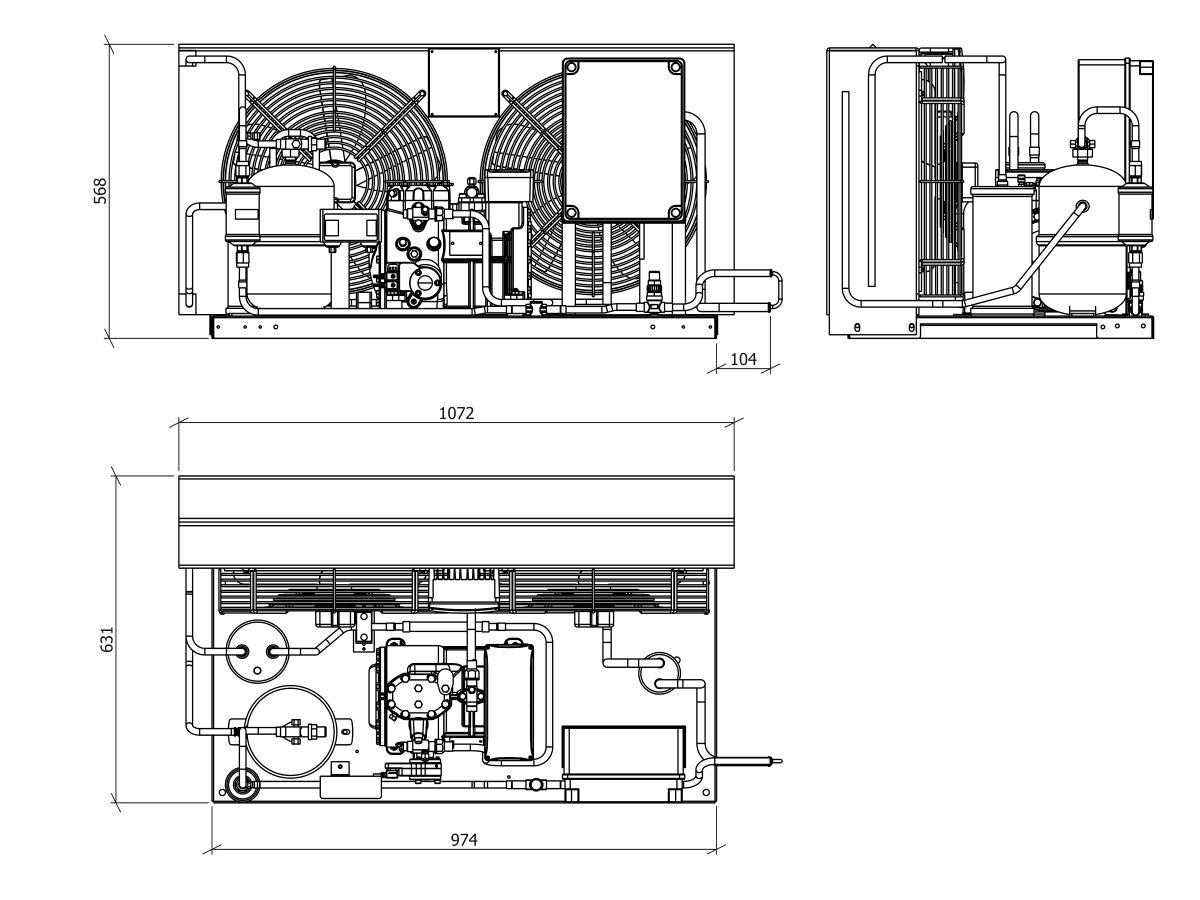

Length	1072 mm
Width	631 mm
Height	568 mm
Suction Connection Size	5/8 "
Liquid Connection Size	1/2 "
Fan Diameter	400 mm
Weight	83 kg
Number of Fans	2
Fan MOC	1.46 A
Fan Electrical Supply	240 V
Fan Phase	Single Phase
Receiver Capacity at 80%	6 kg
Nominal Horsepower	1.5 HP
Sound Power Level	66 dBA
Compressor MOC	4.5 A
Compressor Electrical Supply	400 V
Compressor Phase	Three Phase
Air Flow Rate	8470 m3/h
