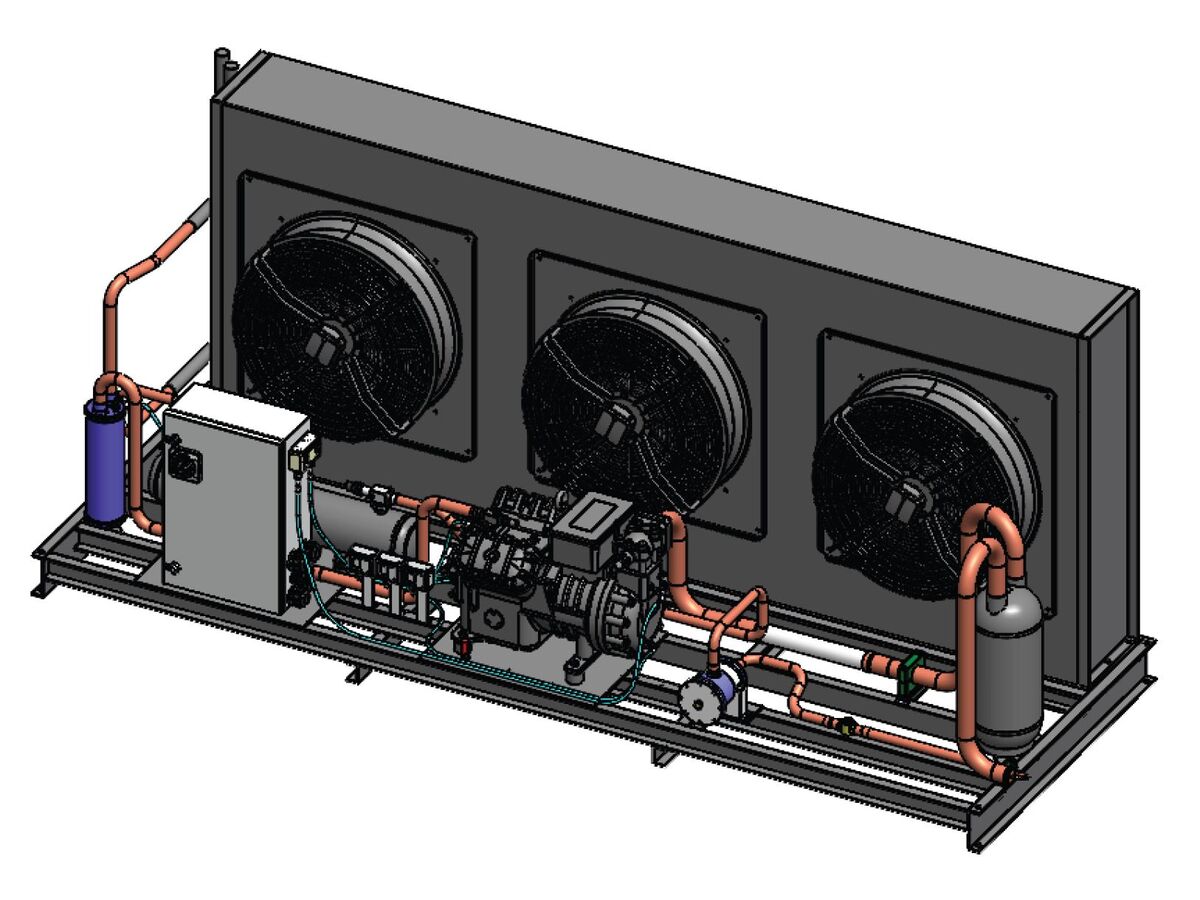

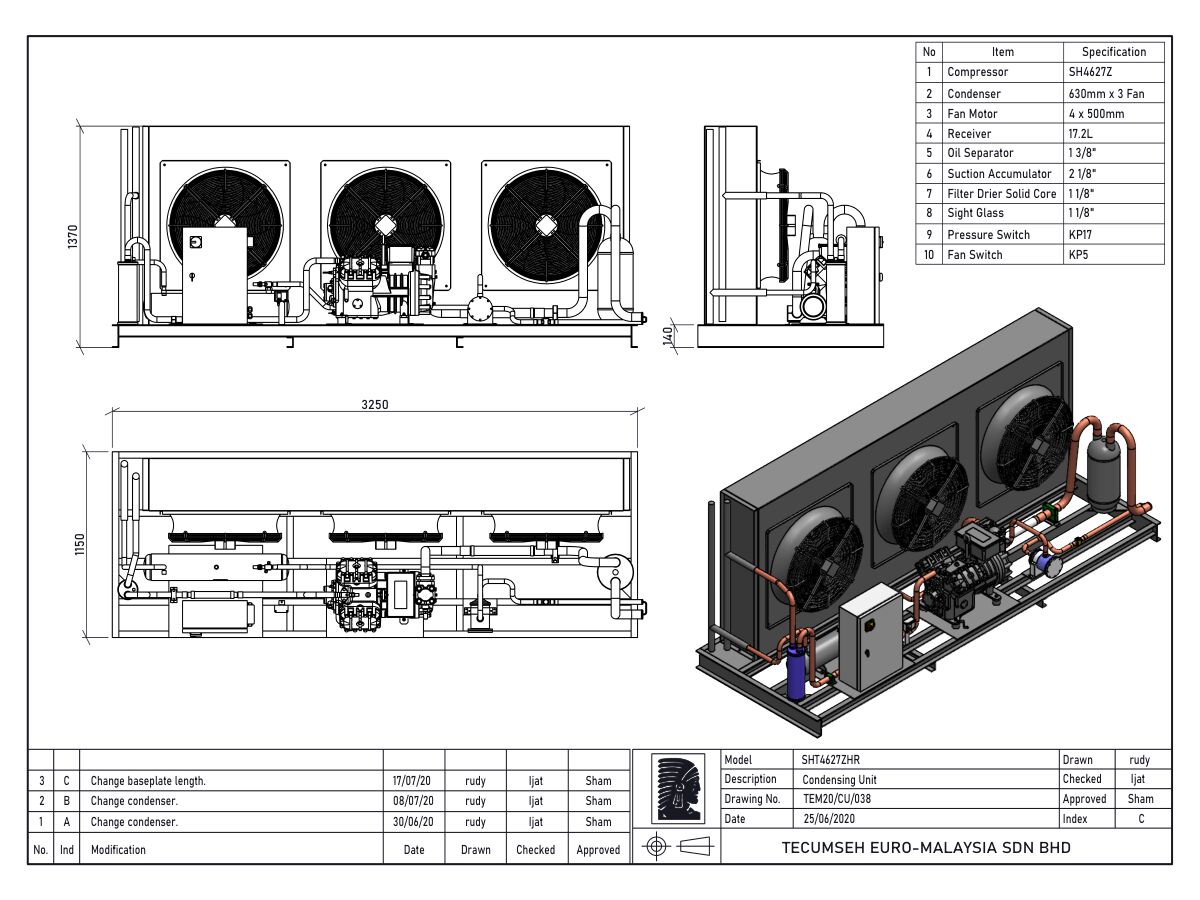

Tecumseh Semi Hermetic EVO Condensing Unit SHT4627ZHR-TZ 3 Phase from Reece

Refrigerant Type	R448A & R452A
Model Number	SHT4627ZHR
Compressor Type	Semi-Hermetic
Compressor Model	SH4627ZMZ
Length	3250 mm
Width	1150 mm
Height	1370 mm
Suction Connection Size	2 1/8 "
Liquid Connection Size	1 1/8 "
Fan Diameter	630 mm
Weight	650 kg
Number of Fans	3
Fan MOC	14.34 A
Fan Electrical Supply	240 V
Fan Phase	Single Phase
Receiver Capacity at 80%	17.2 kg
Nominal Horsepower	25 HP
Sound Power Level	80 dBA
Compressor MOC	43.5 A
Compressor Electrical Supply	400 V
Compressor Phase	Three Phase
Air Flow Rate	29880 m3/h
