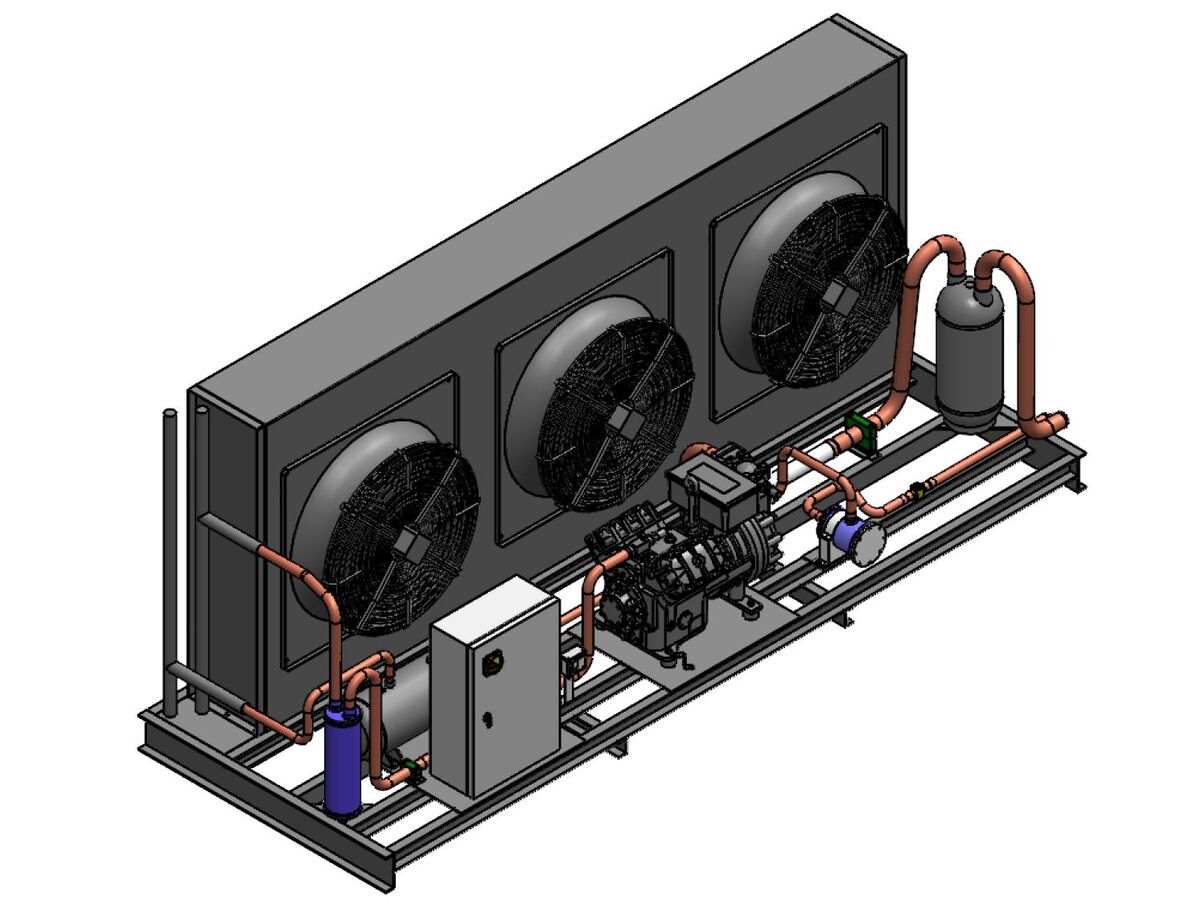

Tecumseh Semi Hermetic EVO Condensing Unit SHT4632ZHR-TZ 3 Phase
Product code: 3506028

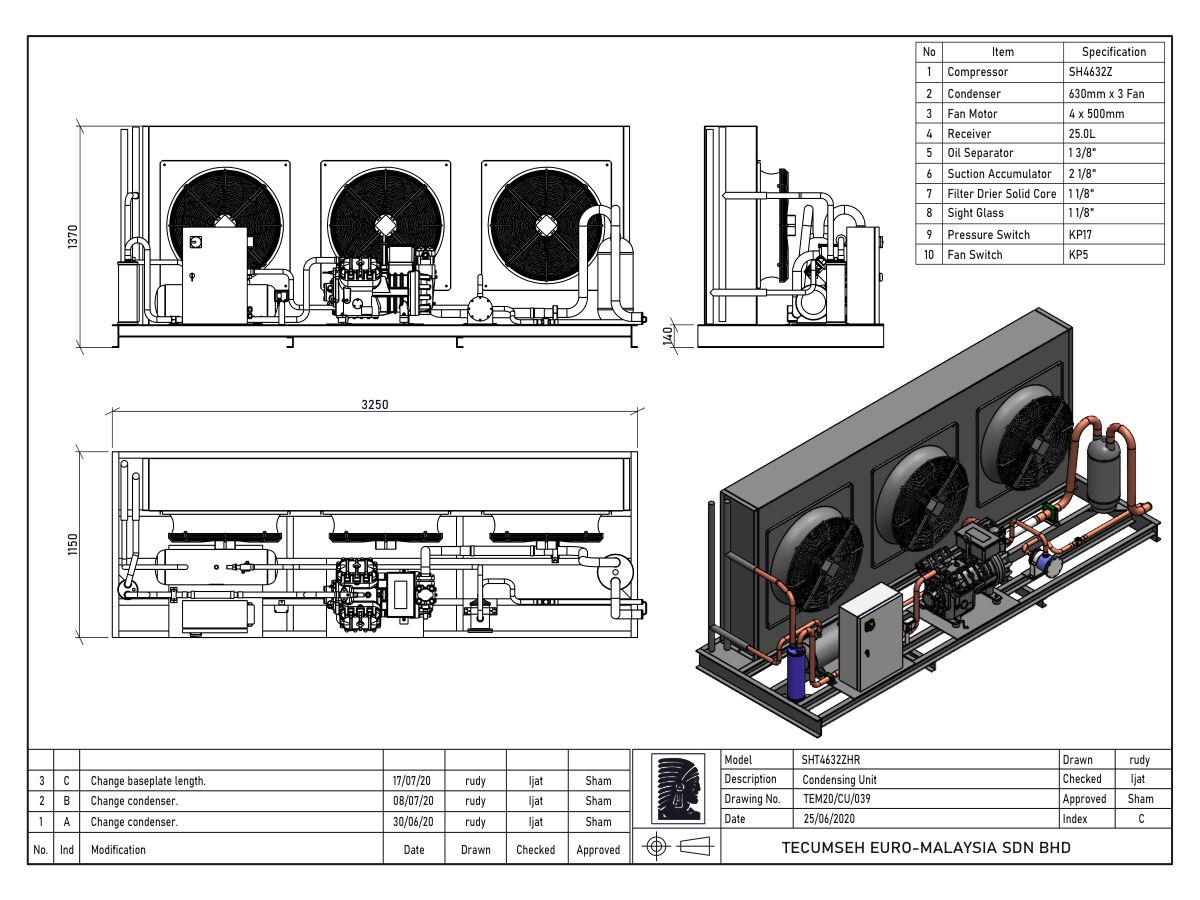

Size and Dimensions
| Connection Size (Liquid) | 1-1/8" |
|---|---|
| Connection Size (Suction) | 2-1/8" |
| Width | 1150 mm |
| Height | 1370 mm |
| Length | 3250 mm |
| Weight (Net) | 660 kg |
General Information
| Model Number | SHT4632ZHR |
|---|---|
| Compressor Model | SH4632ZMZ |
| Product Range | SHT |
Technical Information
| Compressor Horsepower | 30 HP |
|---|---|
| Number of Fans | 3 |
| Fan Diameter | 630 mm |
| Fan Air Flow | 29880 m3/h |
| Receiver Capacity kg @ 80% | 25 kg |
| Compressor Displacement | 83.81 m3/h |
Power Information
| Compressor Phase | 3 |
|---|---|
| Compressor Electrical Supply | 400V |
| Compressor Hertz | 50Hz |
| Compressor MOC | 49.2 A |
| Fan Phase | 1 |
| Fan Electrical Supply | 220-240V |
| Fan Electrical Hertz | 50Hz |
| Fan MOC | 3 X 4.78 A |
| Sound Power Level | 80 dBA |
R134a Capacity Data
| Specifications | EN13215 Rating Standard, Midpoint Temperature Reference |
|---|---|
| 32 Deg C @ -30 Deg C (SST) | 9137 W |
| 32 Deg C @ -25 Deg C (SST) | 12541 W |
| 32 Deg C @ -20 Deg C (SST) | 16683 W |
| 32 Deg C @ -15 Deg C (SST) | 21622 W |
| 32 Deg C @ -10 Deg C (SST) | 27405 W |
| 32 Deg C @ -5 Deg C (SST) | 34075 W |
| 32 Deg C @ 0 Deg C (SST) | 41663 W |
| 32 Deg C @ 5 Deg C (SST) | 50192 W |
| 32 Deg C @ 10 Deg C (SST) | 59678 W |
| 35 Deg C @ -30 Deg C (SST) | 8533 W |
| 35 Deg C @ -25 Deg C (SST) | 11854 W |
| 35 Deg C @ -20 Deg C (SST) | 15880 W |
| 35 Deg C @ -15 Deg C (SST) | 20670 W |
| 35 Deg C @ -10 Deg C (SST) | 26274 W |
| 35 Deg C @ -5 Deg C (SST) | 32734 W |
| 35 Deg C @ 0 Deg C (SST) | 40084 W |
| 35 Deg C @ 5 Deg C (SST) | 48348 W |
| 35 Deg C @ 10 Deg C (SST) | 57544 W |
| 38 Deg C @ -30 Deg C (SST) | 7932 W |
| 38 Deg C @ -25 Deg C (SST) | 11170 W |
| 38 Deg C @ -20 Deg C (SST) | 15080 W |
| 38 Deg C @ -15 Deg C (SST) | 19722 W |
| 38 Deg C @ -10 Deg C (SST) | 25146 W |
| 38 Deg C @ -5 Deg C (SST) | 31397 W |
| 38 Deg C @ 0 Deg C (SST) | 38508 W |
| 38 Deg C @ 5 Deg C (SST) | 46508 W |
| 38 Deg C @ 10 Deg C (SST) | 55414 W |
| 43 Deg C @ -30 Deg C (SST) | 6941 W |
| 43 Deg C @ -25 Deg C (SST) | 10040 W |
| 43 Deg C @ -20 Deg C (SST) | 13756 W |
| 43 Deg C @ -15 Deg C (SST) | 18150 W |
| 43 Deg C @ -10 Deg C (SST) | 23275 W |
| 43 Deg C @ -5 Deg C (SST) | 29176 W |
| 43 Deg C @ 0 Deg C (SST) | 35891 W |
| 43 Deg C @ 5 Deg C (SST) | 43450 W |
| 43 Deg C @ 10 Deg C (SST) | 51874 W |
| Notes | *Additional Cooling required |
R404A Capacity Data
| Specifications | EN13215 Rating Standard, Midpoint Temperature Reference |
|---|---|
| 32 Deg C @ -40 Deg C (SST) | 11146 W |
| 32 Deg C @ -35 Deg C (SST) | 15222 W |
| 32 Deg C @ -30 Deg C (SST) | 20044 W |
| 32 Deg C @ -25 Deg C (SST) | 25665 W |
| 32 Deg C @ -20 Deg C (SST) | 32127 W |
| 32 Deg C @ -15 Deg C (SST) | 39461 W |
| 32 Deg C @ -10 Deg C (SST) | 47683 W |
| 32 Deg C @ -5 Deg C (SST) | 56802 W |
| 32 Deg C @ 0 Deg C (SST) | 66817 W |
| 32 Deg C @ 5 Deg C (SST) | 77719 W |
| 32 Deg C @ 10 Deg C (SST) | - |
| 32 Deg C @ 15 Deg C (SST) | - |
| 35 Deg C @ -40 Deg C (SST) | 10367 W* |
| 35 Deg C @ -35 Deg C (SST) | 14290 W |
| 35 Deg C @ -30 Deg C (SST) | 18907 W |
| 35 Deg C @ -25 Deg C (SST) | 24275 W |
| 35 Deg C @ -20 Deg C (SST) | 30440 W |
| 35 Deg C @ -15 Deg C (SST) | 37433 W |
| 35 Deg C @ -10 Deg C (SST) | 45276 W |
| 35 Deg C @ -5 Deg C (SST) | 53981 W |
| 35 Deg C @ 0 Deg C (SST) | 63551 W |
| 35 Deg C @ 5 Deg C (SST) | 73984 W |
| 35 Deg C @ 10 Deg C (SST) | - |
| 35 Deg C @ 15 Deg C (SST) | - |
| 38 Deg C @ -40 Deg C (SST) | 9610 W* |
| 38 Deg C @ -35 Deg C (SST) | 13378 W* |
| 38 Deg C @ -30 Deg C (SST) | 17790 W |
| 38 Deg C @ -25 Deg C (SST) | 22904 W |
| 38 Deg C @ -20 Deg C (SST) | 28768 W |
| 38 Deg C @ -15 Deg C (SST) | 35420 W |
| 38 Deg C @ -10 Deg C (SST) | 42882 W |
| 38 Deg C @ -5 Deg C (SST) | 51173 W |
| 38 Deg C @ 0 Deg C (SST) | 60298 W |
| 38 Deg C @ 5 Deg C (SST) | 70261 W |
| 38 Deg C @ 10 Deg C (SST) | - |
| 38 Deg C @ 15 Deg C (SST) | - |
| 43 Deg C @ -40 Deg C (SST) | - |
| 43 Deg C @ -35 Deg C (SST) | 11908 W* |
| 43 Deg C @ -30 Deg C (SST) | 15973 W* |
| 43 Deg C @ -25 Deg C (SST) | 20660 W |
| 43 Deg C @ -20 Deg C (SST) | 26022 W |
| 43 Deg C @ -15 Deg C (SST) | 32100 W |
| 43 Deg C @ -10 Deg C (SST) | 38926 W |
| 43 Deg C @ -5 Deg C (SST) | 46522 W |
| 43 Deg C @ 0 Deg C (SST) | 54905 W |
| 43 Deg C @ 10 Deg C (SST) | - |
| 43 Deg C @ 15 Deg C (SST) | - |
| Notes | *Additional Cooling required |
R448A Capacity Data
| 32 Deg C @ -40 Deg C (SST) | 10284 W* |
|---|---|
| 32 Deg C @ -35 Deg C (SST) | 14550 W* |
| 32 Deg C @ -30 Deg C (SST) | 19470 W |
| 32 Deg C @ -25 Deg C (SST) | 25168 W |
| 32 Deg C @ -20 Deg C (SST) | 31755 W |
| 32 Deg C @ -15 Deg C (SST) | 39323 W |
| 32 Deg C @ -10 Deg C (SST) | 47944 W |
| 32 Deg C @ -5 Deg C (SST) | 57674 W |
| 32 Deg C @ 0 Deg C (SST) | 68550 W |
| 32 Deg C @ 5 Deg C (SST) | 80592 W |
| 32 Deg C @ 10 Deg C (SST) | - |
| 32 Deg C @ 15 Deg C (SST) | - |
| 35 Deg C @ -40 Deg C (SST) | 9546 W* |
| 35 Deg C @ -35 Deg C (SST) | 13693 W* |
| 35 Deg C @ -30 Deg C (SST) | 18437 W |
| 35 Deg C @ -25 Deg C (SST) | 23909 W |
| 35 Deg C @ -20 Deg C (SST) | 30218 W |
| 35 Deg C @ -15 Deg C (SST) | 37462 W |
| 35 Deg C @ -10 Deg C (SST) | 45716 W |
| 35 Deg C @ -5 Deg C (SST) | 55041 W |
| 35 Deg C @ 0 Deg C (SST) | 65479 W |
| 35 Deg C @ 5 Deg C (SST) | 77054 W |
| 35 Deg C @ 10 Deg C (SST) | - |
| 35 Deg C @ 15 Deg C (SST) | - |
| 38 Deg C @ -40 Deg C (SST) | 8813 W* |
| 38 Deg C @ -35 Deg C (SST) | 12836 W* |
| 38 Deg C @ -30 Deg C (SST) | 17405 W* |
| 38 Deg C @ -25 Deg C (SST) | 22647 W |
| 38 Deg C @ -20 Deg C (SST) | 28678 W |
| 38 Deg C @ -15 Deg C (SST) | 35597 W |
| 38 Deg C @ -10 Deg C (SST) | 43484 W |
| 38 Deg C @ -5 Deg C (SST) | 52405 W |
| 38 Deg C @ 0 Deg C (SST) | 62404 W |
| 38 Deg C @ 5 Deg C (SST) | 73514 W |
| 38 Deg C @ 10 Deg C (SST) | - |
| 38 Deg C @ 15 Deg C (SST) | - |
| 43 Deg C @ -40 Deg C (SST) | 7608 W* |
| 43 Deg C @ -35 Deg C (SST) | 11421 W* |
| 43 Deg C @ -30 Deg C (SST) | 15690 W* |
| 43 Deg C @ -25 Deg C (SST) | 20546 W* |
| 43 Deg C @ -20 Deg C (SST) | 26110 W |
| 43 Deg C @ -15 Deg C (SST) | 32486 W |
| 43 Deg C @ -10 Deg C (SST) | 39761 W |
| 43 Deg C @ -5 Deg C (SST) | 48007 W |
| 43 Deg C @ 0 Deg C (SST) | 57278 W |
| 43 Deg C @ 5 Deg C (SST) | 67614 W |
| 43 Deg C @ 10 Deg C (SST) | - |
| 43 Deg C @ 15 Deg C (SST) | - |
R449A Capacity Data
| 32 Deg C @ -40 Deg C (SST) | 10168 W* |
|---|---|
| 32 Deg C @ -35 Deg C (SST) | 14402 W* |
| 32 Deg C @ -30 Deg C (SST) | 19286 W |
| 32 Deg C @ -25 Deg C (SST) | 24941 W |
| 32 Deg C @ -20 Deg C (SST) | 31478 W |
| 32 Deg C @ -15 Deg C (SST) | 38985 W |
| 32 Deg C @ -10 Deg C (SST) | 47537 W |
| 32 Deg C @ -5 Deg C (SST) | 57187 W |
| 32 Deg C @ 0 Deg C (SST) | 67973 W |
| 32 Deg C @ 5 Deg C (SST) | 79916 W |
| 32 Deg C @ 10 Deg C (SST) | - |
| 32 Deg C @ 15 Deg C (SST) | - |
| 35 Deg C @ -40 Deg C (SST) | 9437 W* |
| 35 Deg C @ -35 Deg C (SST) | 13554 W* |
| 35 Deg C @ -30 Deg C (SST) | 18265 W |
| 35 Deg C @ -25 Deg C (SST) | 23697 W |
| 35 Deg C @ -20 Deg C (SST) | 29959 W |
| 35 Deg C @ -15 Deg C (SST) | 37146 W |
| 35 Deg C @ -10 Deg C (SST) | 45334 W |
| 35 Deg C @ -5 Deg C (SST) | 54582 W |
| 35 Deg C @ 0 Deg C (SST) | 64933 W |
| 35 Deg C @ 5 Deg C (SST) | 76412 W |
| 35 Deg C @ 10 Deg C (SST) | - |
| 35 Deg C @ 15 Deg C (SST) | - |
| 38 Deg C @ -40 Deg C (SST) | 8710 W* |
| 38 Deg C @ -35 Deg C (SST) | 12707 W* |
| 38 Deg C @ -30 Deg C (SST) | 17244 W* |
| 38 Deg C @ -25 Deg C (SST) | 22450 W |
| 38 Deg C @ -20 Deg C (SST) | 28436 W |
| 38 Deg C @ -15 Deg C (SST) | 35302 W |
| 38 Deg C @ -10 Deg C (SST) | 43126 W |
| 38 Deg C @ -5 Deg C (SST) | 51973 W |
| 38 Deg C @ 0 Deg C (SST) | 61889 W |
| 38 Deg C @ 5 Deg C (SST) | 72905 W |
| 38 Deg C @ 10 Deg C (SST) | - |
| 38 Deg C @ 15 Deg C (SST) | - |
| 43 Deg C @ -40 Deg C (SST) | 7515 W* |
| 43 Deg C @ -35 Deg C (SST) | 11306 W* |
| 43 Deg C @ -30 Deg C (SST) | 15549 W* |
| 43 Deg C @ -25 Deg C (SST) | 20374 W* |
| 43 Deg C @ -20 Deg C (SST) | 25898 W |
| 43 Deg C @ -15 Deg C (SST) | 32226 W |
| 43 Deg C @ -10 Deg C (SST) | 39443 W |
| 43 Deg C @ -5 Deg C (SST) | 47621 W |
| 43 Deg C @ 0 Deg C (SST) | 56813 W |
| 43 Deg C @ 5 Deg C (SST) | 67060 W |
| 43 Deg C @ 10 Deg C (SST) | - |
| 43 Deg C @ 15 Deg C (SST) | - |
R452A Capacity Data
| 32 Deg C @ -40 Deg C (SST) | 10868 W* |
|---|---|
| 32 Deg C @ -35 Deg C (SST) | 14414 W* |
| 32 Deg C @ -30 Deg C (SST) | 18856 W |
| 32 Deg C @ -25 Deg C (SST) | 24238 W |
| 32 Deg C @ -20 Deg C (SST) | 30588 W |
| 32 Deg C @ -15 Deg C (SST) | 37921 W |
| 32 Deg C @ -10 Deg C (SST) | 46235 W |
| 32 Deg C @ -5 Deg C (SST) | 55516 W |
| 32 Deg C @ 0 Deg C (SST) | 65741 W |
| 32 Deg C @ 5 Deg C (SST) | 76880 W |
| 32 Deg C @ 10 Deg C (SST) | - |
| 32 Deg C @ 15 Deg C (SST) | - |
| 35 Deg C @ -40 Deg C (SST) | 10067 W* |
| 35 Deg C @ -35 Deg C (SST) | 13463 W* |
| 35 Deg C @ -30 Deg C (SST) | 17697 W* |
| 35 Deg C @ -25 Deg C (SST) | 22817 W |
| 35 Deg C @ -20 Deg C (SST) | 28858 W |
| 35 Deg C @ -15 Deg C (SST) | 35835 W |
| 35 Deg C @ -10 Deg C (SST) | 43755 W |
| 35 Deg C @ -5 Deg C (SST) | 52608 W |
| 35 Deg C @ 0 Deg C (SST) | 62377 W |
| 35 Deg C @ 5 Deg C (SST) | 73036 W |
| 35 Deg C @ 10 Deg C (SST) | - |
| 35 Deg C @ 15 Deg C (SST) | - |
| 38 Deg C @ -40 Deg C (SST) | 9264 W* |
| 38 Deg C @ -35 Deg C (SST) | 12514 W* |
| 38 Deg C @ -30 Deg C (SST) | 16546 W* |
| 38 Deg C @ -25 Deg C (SST) | 21412 W |
| 38 Deg C @ -20 Deg C (SST) | 27148 W |
| 38 Deg C @ -15 Deg C (SST) | 33778 W |
| 38 Deg C @ -10 Deg C (SST) | 41310 W |
| 38 Deg C @ -5 Deg C (SST) | 49741 W |
| 38 Deg C @ 0 Deg C (SST) | 59060 W |
| 38 Deg C @ 5 Deg C (SST) | 69245 W |
| 38 Deg C @ 10 Deg C (SST) | - |
| 38 Deg C @ 15 Deg C (SST) | - |
| 43 Deg C @ -40 Deg C (SST) | 7954 W* |
| 43 Deg C @ -35 Deg C (SST) | 10974 W* |
| 43 Deg C @ -30 Deg C (SST) | 14682 W* |
| 43 Deg C @ -25 Deg C (SST) | 19136 W* |
| 43 Deg C @ -20 Deg C (SST) | 24379 W |
| 43 Deg C @ -15 Deg C (SST) | 30441 W |
| 43 Deg C @ -10 Deg C (SST) | 37339 W |
| 43 Deg C @ -5 Deg C (SST) | 45080 W |
| 43 Deg C @ 0 Deg C (SST) | 53661 W |
| 43 Deg C @ 5 Deg C (SST) | 63070 W |
| 43 Deg C @ 10 Deg C (SST) | - |
| 43 Deg C @ 15 Deg C (SST) | - |
R513A Capacity Data
| 32 Deg C @ -40 Deg C (SST) | - |
|---|---|
| 32 Deg C @ -35 Deg C (SST) | - |
| 32 Deg C @ -30 Deg C (SST) | 10543 W* |
| 32 Deg C @ -25 Deg C (SST) | 13996 W* |
| 32 Deg C @ -20 Deg C (SST) | 18199 W* |
| 32 Deg C @ -15 Deg C (SST) | 23193 W |
| 32 Deg C @ -10 Deg C (SST) | 29010 W |
| 32 Deg C @ -5 Deg C (SST) | 35673 W |
| 32 Deg C @ 0 Deg C (SST) | 43198 W |
| 32 Deg C @ 5 Deg C (SST) | 51595 W |
| 32 Deg C @ 10 Deg C (SST) | 60866 W |
| 32 Deg C @ 15 Deg C (SST) | - |
| 35 Deg C @ -40 Deg C (SST) | - |
| 35 Deg C @ -35 Deg C (SST) | - |
| 35 Deg C @ -30 Deg C (SST) | 9860 W* |
| 35 Deg C @ -25 Deg C (SST) | 13217 W* |
| 35 Deg C @ -20 Deg C (SST) | 17291 W* |
| 35 Deg C @ -15 Deg C (SST) | 22121 W |
| 35 Deg C @ -10 Deg C (SST) | 27742 W |
| 35 Deg C @ -5 Deg C (SST) | 34179 W |
| 35 Deg C @ 0 Deg C (SST) | 41451 W |
| 35 Deg C @ 5 Deg C (SST) | 49568 W |
| 35 Deg C @ 10 Deg C (SST) | 58535 W |
| 35 Deg C @ 15 Deg C (SST) | - |
| 38 Deg C @ -40 Deg C (SST) | - |
| 38 Deg C @ -35 Deg C (SST) | - |
| 38 Deg C @ -30 Deg C (SST) | 9177 W* |
| 38 Deg C @ -25 Deg C (SST) | 12441 W* |
| 38 Deg C @ -20 Deg C (SST) | 16386 W* |
| 38 Deg C @ -15 Deg C (SST) | 21055 W |
| 38 Deg C @ -10 Deg C (SST) | 26483 W |
| 38 Deg C @ -5 Deg C (SST) | 32697 W |
| 38 Deg C @ 0 Deg C (SST) | 39717 W |
| 38 Deg C @ 5 Deg C (SST) | 47556 W |
| 38 Deg C @ 10 Deg C (SST) | 56220 W |
| 38 Deg C @ 15 Deg C (SST) | - |
| 43 Deg C @ -40 Deg C (SST) | - |
| 43 Deg C @ -35 Deg C (SST) | - |
| 43 Deg C @ -30 Deg C (SST) | 8046 W* |
| 43 Deg C @ -25 Deg C (SST) | 11158 W* |
| 43 Deg C @ -20 Deg C (SST) | 14894 W* |
| 43 Deg C @ -15 Deg C (SST) | 19298 W* |
| 43 Deg C @ -10 Deg C (SST) | 24408 W |
| 43 Deg C @ -5 Deg C (SST) | 30254 W |
| 43 Deg C @ 0 Deg C (SST) | 36858 W |
| 43 Deg C @ 5 Deg C (SST) | 44237 W |
| 43 Deg C @ 10 Deg C (SST) | 52403 W |
| 43 Deg C @ 15 Deg C (SST) | - |
Tecumseh 'Made Like No Other'
Tecumseh 'Made Like No Other' - The Lab
Tecumseh Brand Story
Video unavailable
Tecumseh Semi Hermetic EVO Condensing Unit SHT4632ZHR-TZ 3 Phase
Hold and drag the right mouse button to move objects.
Scroll with the mouse wheel, or pinch with the trackpad, to zoom
Hold and drag the left mouse button to rotate objects.
Drag with two fingers to move object
Pinch with both fingers to increase/decrease the size.
Drag with one finger to rotate object
