A cool addition to our range.

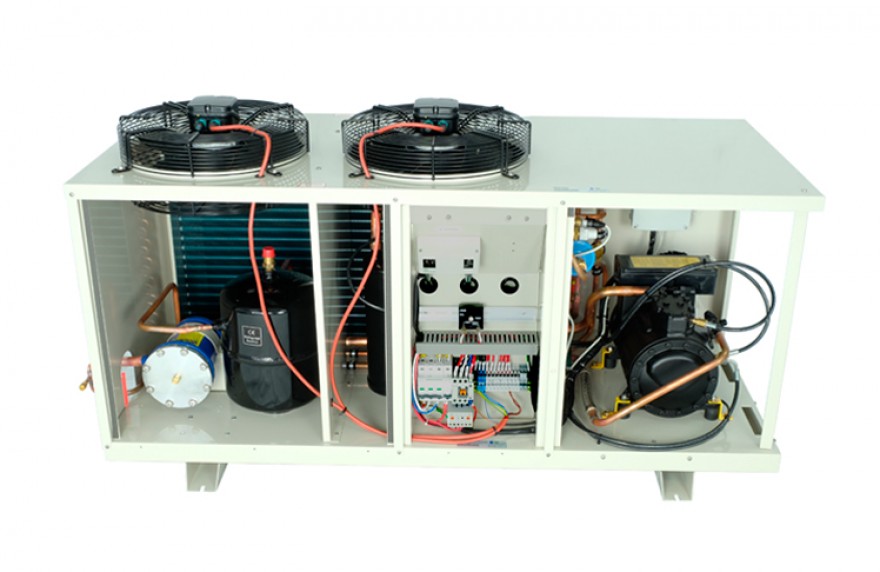

Tecumseh Semi Hermetic Acpac condensing unit.

Actrol is expanding the successful Acpac refrigeration packaged condensing unit range to include models with Tecumseh semi hermetic reciprocating compressors.

The Acpac APS range is designed in Australia to provide a robust energy efficient, fully fitted packaged range with the Tecumseh semi hermetic reciprocating compressors.

This range is designed for use with R134a, R404A and R507 and can be used in both low and medium temperature applications.

Refrigeration capacities range from 4.6kW to 34kW at -5 SST and 32 ambient using R404A refrigerant. More models will be available soon to further extend the range to more than 60kW.

Acpac packaged condensing units use large condensers to ensure reliable refrigeration when you need it most. This is the Acpac packaged advantage. Applications are diverse and include commercial food, beverage cooling and freezing in supermarkets, as well as refrigeration applications in convenience stores, pubs and clubs, restaurants, cafes, food processing and many more. Installation is quick and easy as every Acpac is fully optioned straight out of the box.

All Acpac units include condenser fan controls and epoxy coated condenser fins to ensure superb energy efficient performance in Australia’s diverse weather conditions.

Acpac packaged condensing units are a perfect solution for your customers’ refrigeration requirements.

Features

• Tecumseh Semi Hermetic compressor.
• Compressor fitted with protection Module.
• Large epoxy finned condenser.
• Oil Separator with shut off valve for servicing.
• Suction Accumulator on most models.
• Liquid Receiver.
• Comprehensive electrical board fully wired to all electrical components with cables numbered.
  • Compressor Contactor.
  • Electronic Contactor.
  • HP/LP control.
  • Circuit Breaker.
  • Full wiring to EBM fan motors.
  • Anti short cycle timer.
• Carel Fan Speed control provides stable operation in Australia’s heat.
• Liquid line fitted with;
  • Filter Drier.
  • Moisture Indicator.
  • Line valve.
• Suction demountable drier shell on all models.
• Galvanized powder coated enclosures.
• Easy to read wiring diagram is permanently attached to inside panel for quick service.
• Separate compressor and fan compartments for safe and easy maintenance.
• Transporter Bracket to avoid compressor damage.
• Easy access to all serviceable components.
