Lifting the standard in unit support

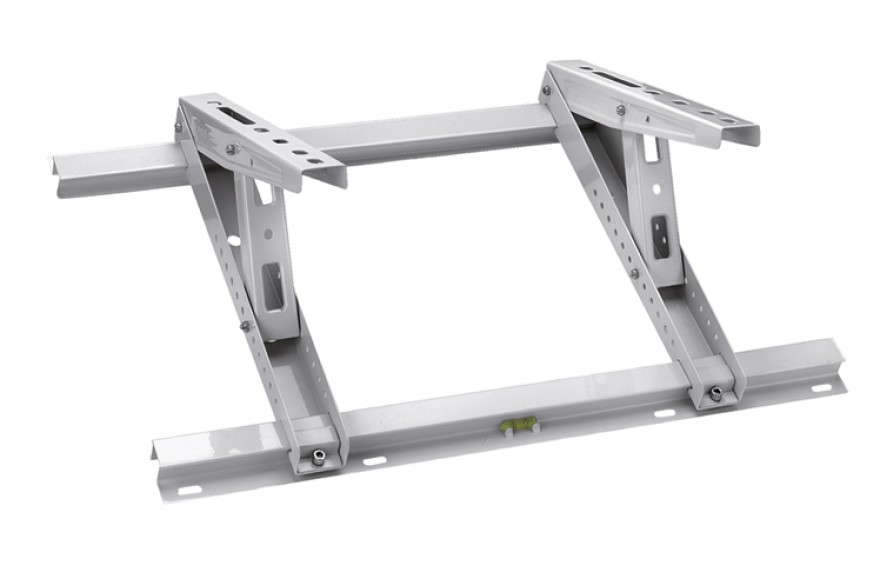

Rodigas manufacture a range of highest quality mounting brackets designed for air conditioning outdoor units,
and are adjustable to suit a variety of unit sizes and applications. The heavy-duty brackets are treated with epoxy resins in polyester making them ideal for outdoor use, while the stainless steel models are capable to take on harsh coastal or marine environments.
Features
- Quick assembly and installation
- Adjustable polypropylene feet
- Supplied with inbuilt level
- Adjustable brackets to suit various size and applications
- Supplied with mounting accessories
Roof Brackets
Sloping Roof Adjustable A/C Bracket Kit
| Product No. | Model No. | Mounting Depth: mm | Maximum Bracket Spacing:mm | Load Rating:kg |
| 209160 | MT650 | 500 | 820 | 140 |
Wall Brackets
Powder Coated Adjustable A/C Bracket Kits
Fully galvanised and powder coated for superior protection
| Product No. | Model No. | Mounting Depth: mm | Maximum Bracket Spacing:mm | Load Rating:kg |
| 209126 | MS230 | 420 | 800 | 100 |
| 209164 | MS253 | 465 | 800 | 140 |
| 209163 | MS257 | 550 | 800 | 140 |
| 209166 | MS213 | 550 | 800 | 200 |
Stainless Steel Adjustable A/C Bracket Kits
304 Stainless Steel, suitable for coastal or marine environments
| Product No. | Model No. | Mounting Depth: mm | Maximum Bracket Spacing:mm |
|
|
| 209165 | MS263 | 420 | 800 | 140 | |
| 209170 | MS264111 | 465 | 800 | 120 | |
| 209171 | MS266111 | 550 | 800 | 120 |
